Produktbeskrivning

Highly efficient, easy-to-deploy 100 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 3 smart modular high capacity battery strings, expandable to 5 strings for extended runtime. See the battery runtime chart for details.



Viktiga egenskaper

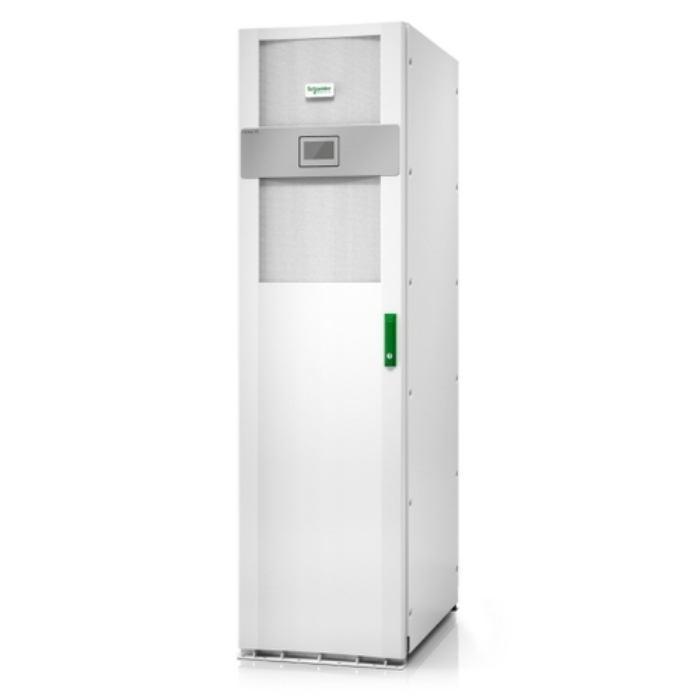

APC Galaxy VS UPS 100kW 400V, 3 internal 9Ah smart modular battery strings expandable to 5, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 100 kVA, Output power: 100000 W. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 480 V. Form factor: Tower, Product colour: White, International Protection (IP) code: IP20. Compliance certificates: RoHS, Certification: IEC 62040-1-1, IEC 62040-2, OSHPD. Width: 550 mm, Depth: 847 mm, Height: 1970 mm



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	100 kVA
Output power	100000 W
Waveform	Sine
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Input frequency	40/70 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	180 A
Heat dissipation	12377 BTU/h
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Output power factor	1
Crest factor	2.5:1
Output voltage Total Harmonic Distortion (THD)	3 %
Noise level	65 dB
Audible alarm(s)	Yes

SmartSlot	Yes
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Battery voltage	480 V

Form factor	Tower
Product colour	White
LED indicators	Yes
International Protection (IP) code	IP20
Certification	IEC 62040-1-1, IEC 62040-2, OSHPD

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	10 - 80 %
Operating altitude	0 - 1005.84 m
Non-operating altitude	0 - 3048 m

Compliance certificates	RoHS
Warranty period	1 year(s)
Sustainability compliance	Yes

Width	550 mm
Depth	847 mm
Height	1970 mm
Weight	680000 g
Package width	755 mm
Package depth	1010 mm
Package height	2082 mm
Package weight	270000 g

Management card included	Yes

Harmonized System (HS) code	85078000
