Produktbeskrivning

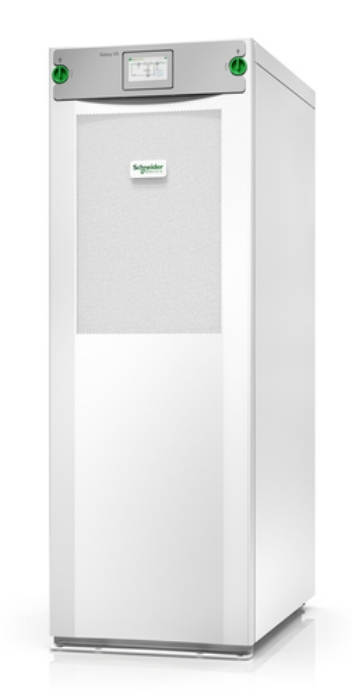

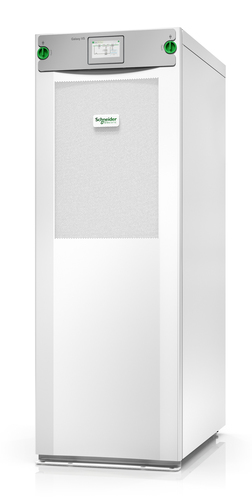

This Galaxy VS UPS GVSUPS50KHS is a highly efficient, easy-to-deploy 50kW, 400V 3-phase UPS. Brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with eConversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in double conversion mode. The UPS is EcoStruxure-connected to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service.



Viktiga egenskaper

APC Galaxy VS UPS 50kW 400V for External Batteries, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 50 kVA, Output power: 50000 W. Battery technology: Lithium-Ion (Li-Ion). Form factor: Tower, Product colour: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC.... Width: 521 mm, Depth: 847 mm, Height: 1485 mm



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	50 kVA
Output power	50000 W
Waveform	Sine
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Input frequency	40/70 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	91 A
Heat dissipation	4915.1 BTU/h
Number of input phases	3
Number of output phases	3
Efficiency	96.1 %
Input power factor	0.99
Crest factor	2.5:1
Noise level	65 dB
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery,Low battery alarm,Overload alarm

SmartSlot	Yes
SmartConnect port	No

Battery technology	Lithium-Ion (Li-Ion)

Form factor	Tower
Product colour	White
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP21
Certification	CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	10 - 80 %
Operating altitude	0 - 984.3 m
Non-operating altitude	0 - 15000 m

Warranty period	1 year(s)

Width	521 mm
Depth	847 mm
Height	1485 mm
Weight	210000 g
Package width	640 mm
Package depth	990 mm
Package height	1680 mm
Package weight	235000 g

Management card included	Yes

Harmonized System (HS) code	85078000

Input connection type	4-wire (3PH + G), 5-wire (3PH + N + G)
Nominal output voltage	400 V
Nominal input voltage	400 V
