Produktbeskrivning

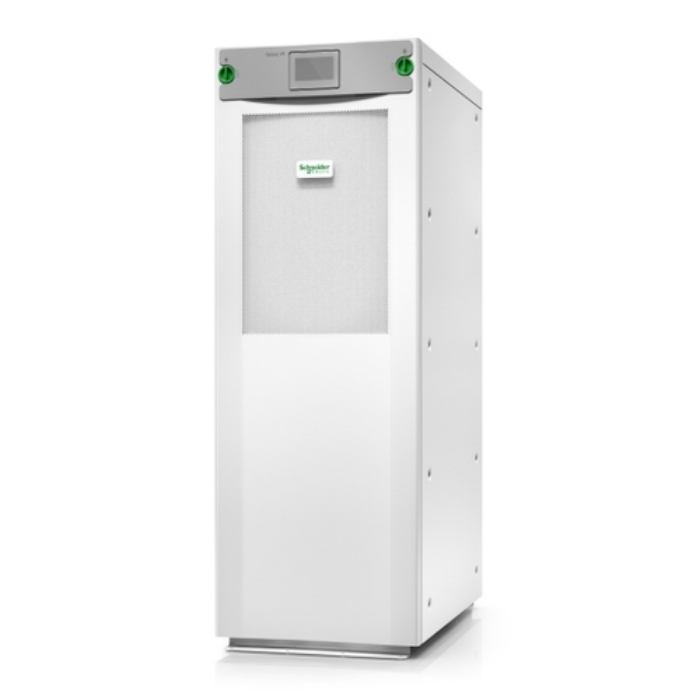

Highly efficient, easy-to-deploy 50 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.



Viktiga egenskaper

APC Galaxy VS UPS 50kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 50 kVA, Output power: 50000 W. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 480 V. Form factor: Tower, Product colour: White, International Protection (IP) code: IP20. Compliance certificates: CE, Certification: IEC 62040-1-1, IEC 62040-2, OSHPD. Width: 521 mm, Depth: 847 mm, Height: 1485 mm



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	50 kVA
Output power	50000 W
Waveform	Sine
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Input frequency	40/70 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	90 A
Heat dissipation	6151 BTU/h
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Output power factor	1
Crest factor	2.5:1
Output voltage Total Harmonic Distortion (THD)	3 %
Noise level	61 dB
Audible alarm(s)	Yes

SmartSlot	Yes
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Battery voltage	480 V

Form factor	Tower
Product colour	White
LED indicators	Yes
International Protection (IP) code	IP20
Certification	IEC 62040-1-1, IEC 62040-2, OSHPD

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 1005.8 m

Warranty period	1 year(s)
Compliance certificates	CE
Sustainability compliance	Yes

Width	521 mm
Depth	847 mm
Height	1485 mm
Weight	200000 g
Package width	640 mm
Package depth	990 mm
Package height	1680 mm
Package weight	200000 g

Management card included	Yes

Harmonized System (HS) code	85078000
