Produktbeskrivning

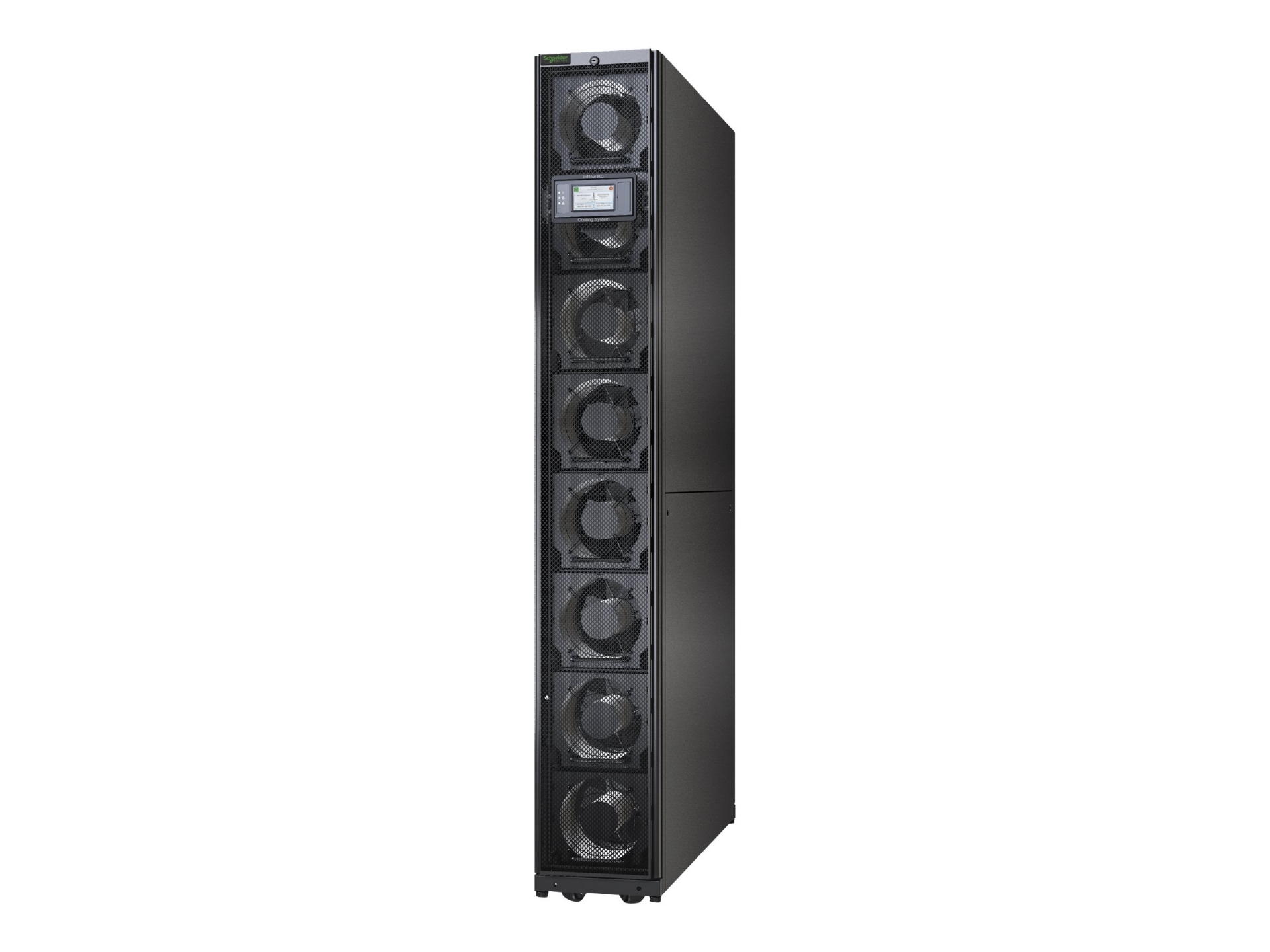

APC InRow RC is a close-coupled chilled water cooling for medium to large data centers.



Egenskaper

Hot swappable fans
This feature allows system to remain operational if a fan replacement is required.

Dew point monitoring
It prevents condensation from forming inside the enclosure by dissuading access when the external dew point is above supply air temperature.

Leak detection
It notifies user in the event of a water leak within the coiling unit.

Top and bottom chilled water connections
It allows chilled water to be connected from the top, if routing from overhead, or bottom, if on a raised floor.

Washable filters
It is easy to maintain, cleanable, deep loading mesh filter removes particles from the return air stream.

Predictable cooling
Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.

Dual A-B power inputs
They draw power from the UPS for power protection with dual feeds for redundancy.

Rack inlet control
Rack inlet control guarantees suitable inlet temperature to IT equipment.

Active response controls
It monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.

Variable speed fans
Variable speed fans reduce energy consumption during off-peak cooling periods.

Row-based architecture
It captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.

Modular design
Modular design provides scalable solutions to add cooling as demand increases.

Scalable densities
This feature allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.

Casters
They provide flexibility to move the unit to wherever cooling is required.

Real-time capacity monitoring
You can monitor real-time display of current and available cooling.

Microprocessor controller
It provides proactive control and real-time monitoring via a four-line, eighty-character, alphanumeric display.

Building management system integration
Send alarms and data points allowing you to manage critical building infrastructure from a single system.



Teknisk specifikation

Produkttyp	Kylt vatten till luftkonditioneringskylsystem
Höjd (U-format)	42U
Bredd	30 cm
Djup	110 cm
Höjd	199 cm
Vikt	162.7 kg
Färg	Svart

Egenskaper	Hörbart larm, kylt vattenbaserad, LCD-status och konntrollkonsol
Standarder som följs	C-Tick, GOST, EN 60950, IEC 61000-3-2, IEC 61000-3-3, VDE, IEC 60950, EN55024, EN55022 klass A, RoHS, REACH

Service och support	Begränsad garanti: - 1 år
