Produktbeskrivning

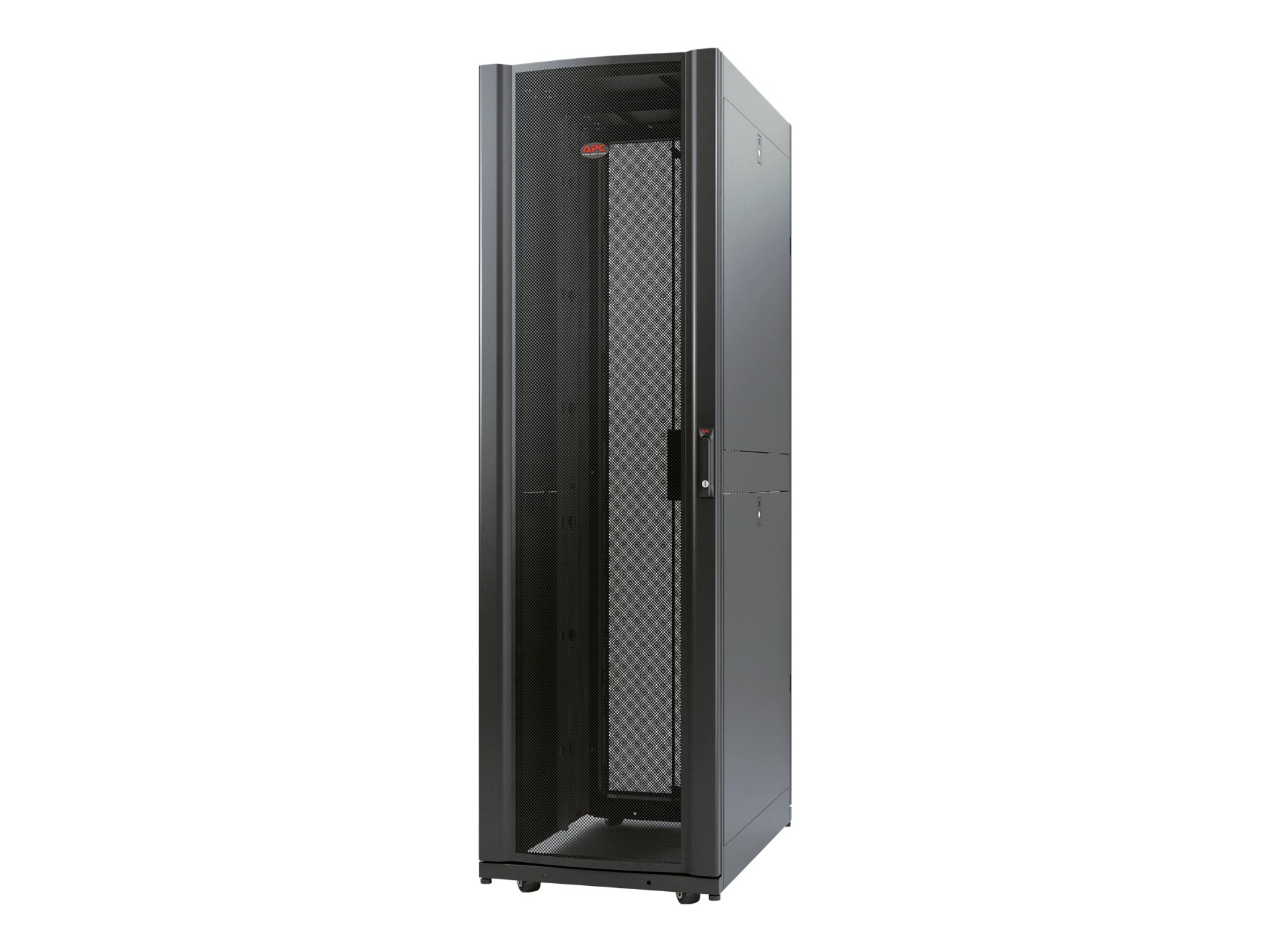

The APC NetShelter SV is the IT enclosure you have become familiar with from APC but now with basic functionality and features provided as a cost-effective solution. The NetShelter SV maintains a strong focus on cooling, power distribution, and cable management to provide a reliable rack-mounting environment for mission-critical equipment but with optional features such as side panels, casters, and rear cable channel that reduces the cost of the base enclosure.



Egenskaper

Cable access openings and panels
Large cable access slots in the roof provide access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.

Perforated front and rear doors
Perforated front and rear doors provide ample ventilation for rack-mount equipment.

Quick release doors with spring pin design
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple spring hinge pin design.

Removable full-height side panels
Side panels are removable for ease of access to the enclosure during equipment installation and setup. Side panels are lockable utilizing a single key that is also usable on the front and rear doors.

Split rear doors
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space.

Standard-profile castors and adjustable leveling feet from underneath
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be adjusted using a wrench from underneath the enclosure.

Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.



Teknisk specifikation

Produkttyp	Rack
Förpackningens innehåll	Nyckel, stödhjulssats för rack, rackutjämningsfötter, rackdörr, sidopanel för rack
Höjd (U-format)	42U
Bredd	60 cm
Djup	82.5 cm
Höjd	199 cm
Vikt	120 kg
Färg	Svart

Viktgräns	1364 kg
Monteringssats	Inkluderat
Egenskaper	Låsbar främre dörr, låsbar sidopanel
Standarder som följs	EIA-310-E, RoHS, UL 60950-1, REACH

Service och support	Begränsad garanti: - 5 år
