Produktbeskrivning

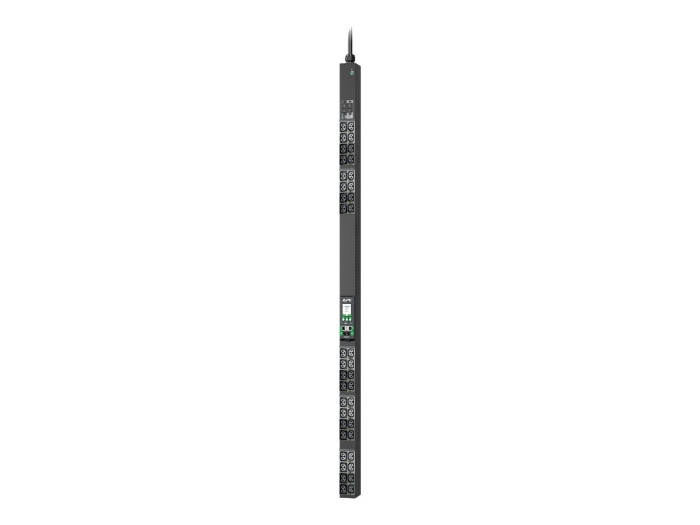

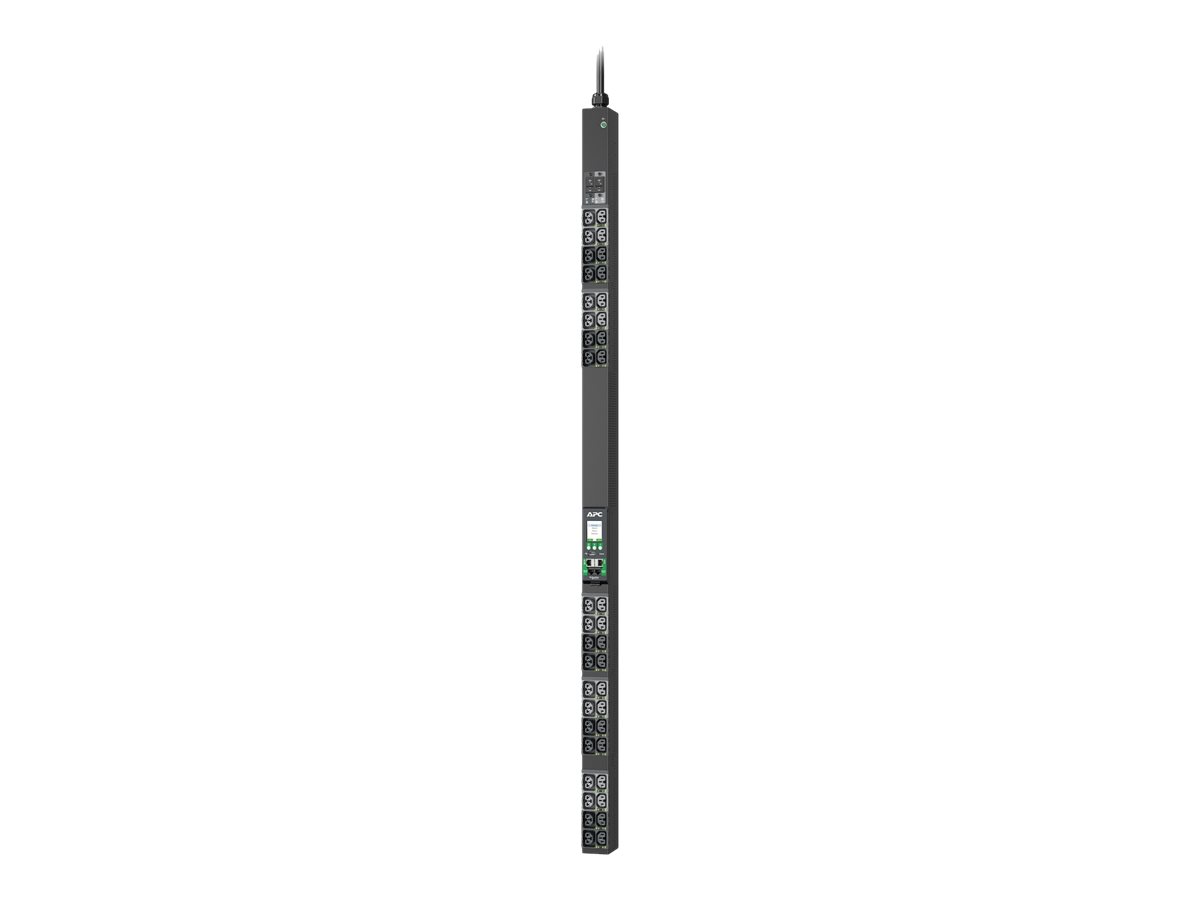

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 Ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures precise measures for capacity planning and threshold alarm monitoring.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Höjd (U-format)	0U
Sladdlängd	3 m
Färg	Svart

Inspänning	AC 200-240 V
Ingångskablage	1-fas
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60309 332P6
Kontaktdetaljer för uteffekt	20 x ström IEC 60320 C13/C15/C19/C21 20 x effekt IEC 60320 C13/C15
Utspänning	AC 230 V
Max elektrisk ström	32 A
Effektkapacitet	7.4 kW / 7400 VA

Gränssnitt för fjärradministration	Ethernet 10/100, Ethernet 10/100/1000

Gränssnitt	1 x hantering (Gigabit Ethernet) - RJ-45 1 x management (Fast Ethernet) - RJ-45 2 x sensor 1 x USB - 4-stifts USB typ A

Medföljande kablar	Strömkabel 3 m
Egenskaper	Vertikal orientering, LCD-bildskärm, överlappningsbar, larmtrösklar, med omkopplare
Standarder som följs	REACH, China RoHS, EN 62368-1, EU RoHS, UKCA
TAA-kompatibel	Ja

Service och support	Begränsad garanti - ersättningsprodukt eller reparation - 3 år

Min temperatur vid drift	-5 °C
Max temperatur vid drift	60 °C
Luftfuktighet vid drift	5 - 95%

Bredd	5.6 cm
Djup	7.5 cm
Höjd	149 cm
Vikt	7.4 kg

Emballagets bredd	11.6 cm
Emballagets djup	20.8 cm
Emballagets höjd	172 cm
Emballagets vikt	9.4 kg
