Produktbeskrivning

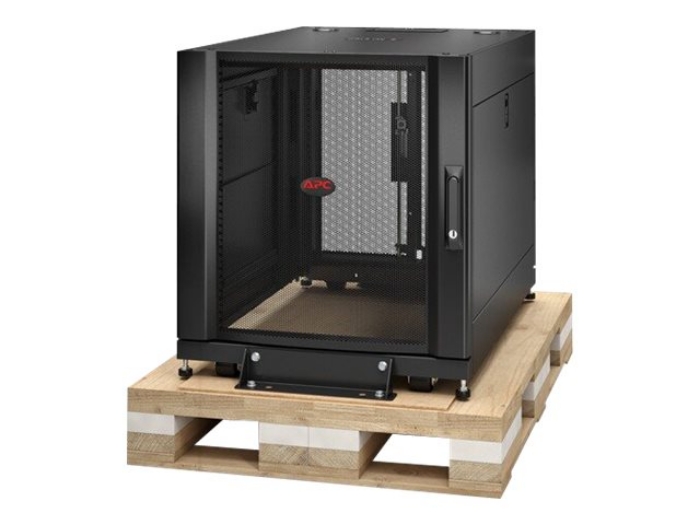

NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.



Egenskaper

Eyebolt support integrated into enclosure frame
Integrated eyebolt holes at the top of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms. Refer to enclosure user documentation for detailed specifications on eyebolt requirements and enclosure weight limits.

Easily removable cable access roof
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.

Quick release doors
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.

Perforated front door with curved profile
Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.

Simple selection
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Schneider Electric has made it easy by handling the details and providing complete enclosures with single part numbers.

Enclosure adjustment tools and hardware provided
All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment.

Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.



Teknisk specifikation

Produkttyp	Rack
Racktyp	Skåp
Produktmaterial	16 gauge stål, 18 gauge stål
Förpackningens innehåll	Sidopaneler, tak, tangenter, nivelleringsfötter, hjul, dörrar, pallramper, återanvändbar behållare
Stativstorlek	19"
Höjd (U-format)	12U
Bredd	60 cm
Djup	90 cm
Höjd	65.8 cm
Vikt	53.98 kg
Färg	Svart

Monteringssats	Inkluderat
Egenskaper	Stötmadrassförpackning
Standarder som följs	RoHS, UL 60950-1, REACH, IP20, China RoHS, UL 2416

Service och support	Begränsad garanti: ersättningsprodukt eller reparation - 5 år

Designat för	P/N: SURT48RMXLBP
