Produktbeskrivning

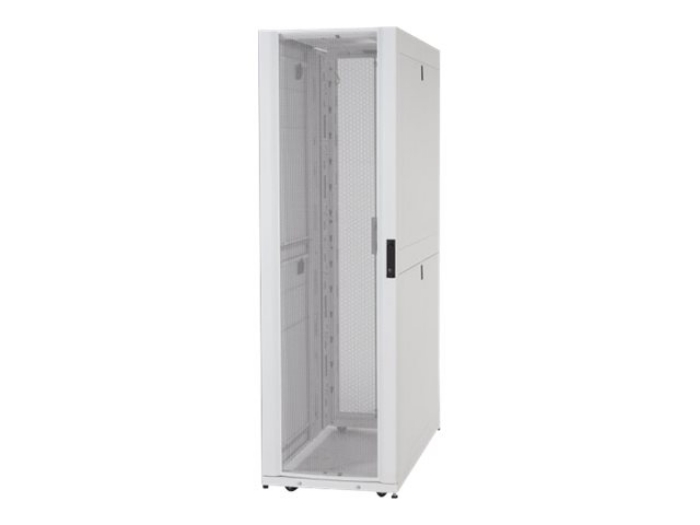

The NetShelter SX is a multifunctional rack enclosure influenced by customer feedback from around the world. These enclosures are designed to meet IT market trends and applications ranging from high-density computing and networking to broadcast and audio-video. With a strong focus on cooling, power distribution, cable management and environmental monitoring, the NetShelter SX rack enclosure provides a reliable rack-mounting environment for mission-critical equipment.



Egenskaper

Integrated joining hardware with multiple width enclosure alignment
Enclosures include preinstalled joining hardware to join enclosures in a row and provide additional stability to the enclosure. The preinstalled joining hardware includes holes for joining to an adjacent enclosure.

Low-profile castors and adjustable leveling feet
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.

Split rear doors
Improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space.

Adjustable mounting rails with captive hardware and rapid alignment
The vertical mounting rails can be adjusted covering virtually any mounting requirement for IT equipment. Easy alignment feature integrated into the enclosure mounting rail and side brace for quick alignment verification without the use of tools to verify alignment. U positions are numbered front and back for rapid installation of equipment.

Preinstalled full-enclosure height rear accessory channels
Integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Channels are preinstalled at the factory in the rear of the enclosure but can be moved to other locations of the enclosure along the side brace to resituate cable management where it is needed most.

Cable access openings with preinstalled brushes
Large cable access slots in the roof provide access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips preinstalled in locations biased towards the front of the enclosure to allow for data cable pass-through and provisions for air containment.

Easily removable cable access roof
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.

Half-height side panels
Half-height quick-release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.

Quick-release doors
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.

Perforated front door with curved profile
Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.

Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Additional electrical grounding inserts are located on the frame for external grounding.

Great load capacity
Features a proven frame design, heavy-gauge mounting rails, and heavy-duty casters.



Teknisk specifikation

Produkttyp	Rack
Racktyp	Skåp
Höjd (U-format)	52U
Bredd	60 cm
Djup	120 cm
Färg	Vit
