Produktbeskrivning

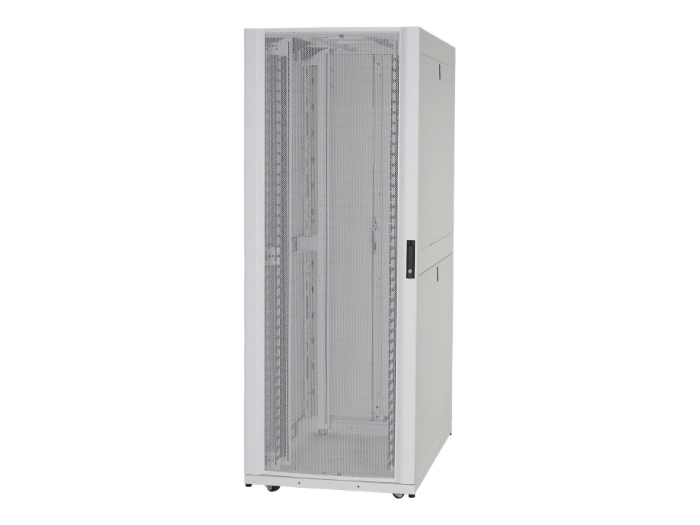

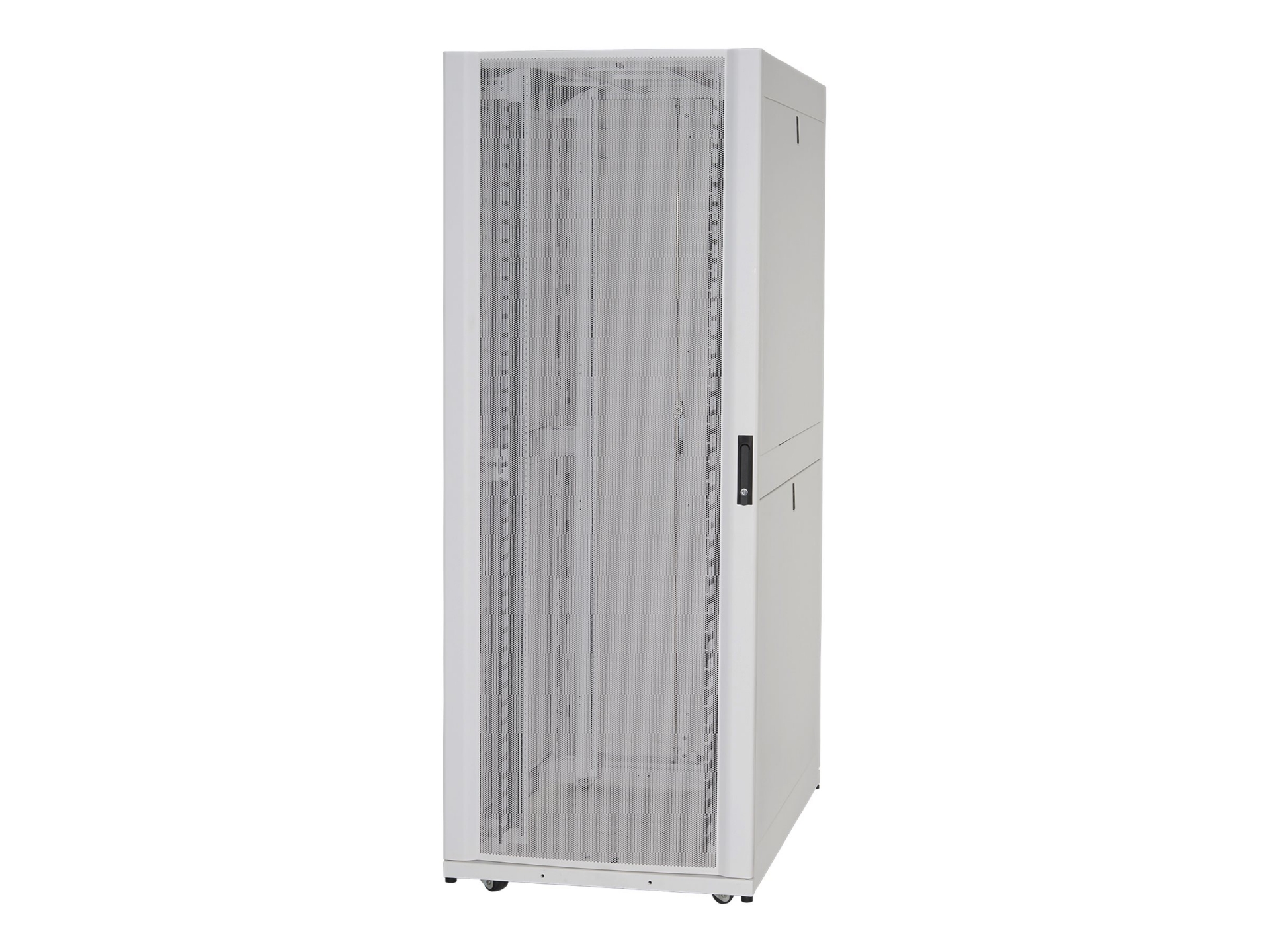

NetShelter SX Networking Enclosure expands APC's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the side airflow duct kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.



Egenskaper

Integrated high density cable management
Decrease installation time while supporting the cabling needs of large networking switches.

Cable protection and pass-through
Smooth plastic fingers provide proper bend radius.

Optimized enclosure design for side-to-side airflow
Airflow management panels, left vertical mounting rail and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle.

Improved cable access
Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.

High density cable management
The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.

Integrated with APC InfraStruXure products
APC cooling, power distribution and cable management products work seamlessly with the enclosures to provide a complete IT infrastructure support system.

Quick release doors
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.

Half-height side panels
Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.

Adjustable leveling feet
Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Enclosures are shipped standard with both leveling feet and castors.

Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.



Teknisk specifikation

Produkttyp	Rack
Racktyp	Skåp
Produktmaterial	16 gauge stål, 18 gauge stål
Förpackningens innehåll	Nyckel, sidopaneler, framlucka, tak, byggnadsmaskinvara, nivelleringsfötter, monteringsmaskinvara, dörrar med samma nyckel, förinstallerade hjul
Stativstorlek	19"
Höjd (U-format)	42U
Bredd	75 cm
Djup	120 cm
Höjd	199.1 cm
Vikt	161.36 kg
Färg	Grå, RAL 7035

Viktgräns	1363.64 kg
Monteringssats	Inkluderat
Antal hjul	4
Egenskaper	Inställningsbart djup, delad bakdörr, integrerad kabelhantering, perforerade framdörrar, justerbara vertikala monteringsskenor, öppningar för kabelåtkomst, perforerad bakdörr

Service och support	Begränsad garanti: utbyte - 5 år
