Produktbeskrivning

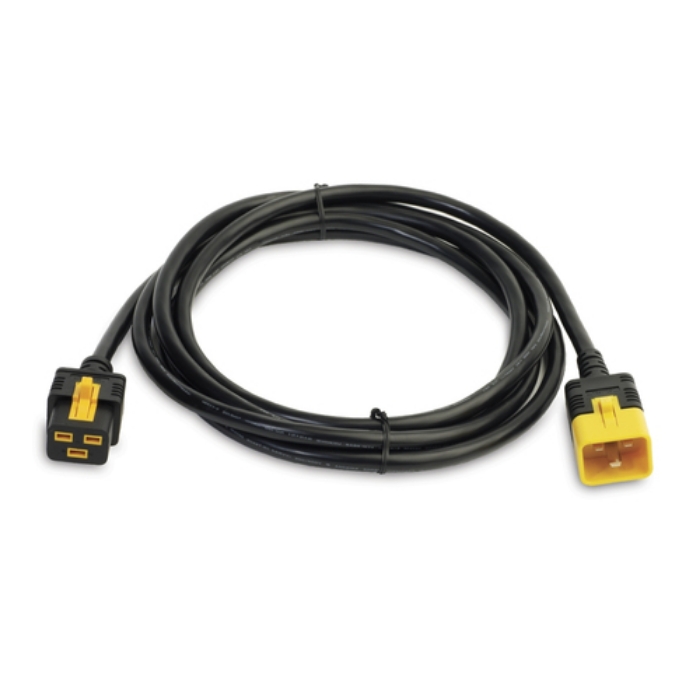

AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.



Viktiga egenskaper

APC Power Cord, Locking C19 to C20, 3.0m. Cable length: 3 m, Connector 1: C19 coupler, Connector 2: C20 coupler. Input voltage: 230 V, Input current: 16 A



Teknisk specifikation

Product colour	Black
Connector 2 gender	Female
Connector 1 gender	Male
Cable length	3 m
Connector 1	C19 coupler
Connector 2	C20 coupler

Input voltage	230 V
Input current	16 A

Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-25 - 75 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	20 - 80 %
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m

Width	230 mm
Depth	45 mm
Height	230 mm
Weight	510 g

Package width	230 mm
Package depth	45 mm
Package height	230 mm
Package weight	510 g

Total carbon footprint (kg of CO2e)	160.44

Harmonized System (HS) code	84733080

Dimensions (WxDxH)	230 x 45 x 230 mm
Weight (imperial)	1.124 lbs
