Produktbeskrivning

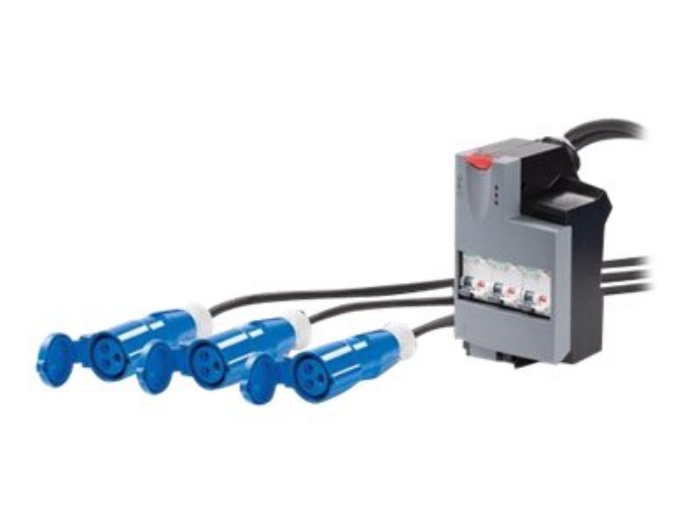

APC Power Distribution Module features built-in Web/SNMP management. Full-featured management via a Web browser as well as comprehensive management from a network management system. Low cost power distribution provides a number of outlets to bring power to rack equipment at an affordable price. Smallest footprint minimizes your real estate expenses. PDU equipment can easily be relocated to accommodate a changing data center environment. Current monitoring monitors the aggregate current draw per power distribution unit.



Egenskaper

Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a network management system.

Low cost power distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.

Smallest footprint
Minimizes your real estate expenses.

System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.

Current monitoring
Monitors the aggregate current draw per power distribution unit.

Local and web-based monitoring
Status available to customers both in the data center and remotely.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - insticksmodul
Färg	Grå

Inspänning	AC 400 V
Erforderlig frekvens	50 Hz
Kontaktdetaljer för uteffekt	3 x ström IEC 60309 16A
Utspänning	230 V
Max elektrisk ström	16 A
Kretsskydd	Strömbrytare

Protokoll för administration på distans	SNMP

Medföljande kablar	Strömkabel - integrerad - 3 m Strömkabel - integrerad - 3.6 m Strömkabel - integrerad - 4.2 m
Egenskaper	LED-indikatorer
Standarder som följs	VDE, RoHS

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	30 °C
Luftfuktighet vid drift	0 - 95%

Vikt	6.8 kg

Emballagets vikt	7.7 kg

Designat för

P/N: AP7551, AP7551-DB, AP7551-SR, AP7551-ST, AP7551X29, AP7554, AP7554-MA, AP8659EU3, AP8858EU3, AP8958EU3, AP8959EU3, AP8959EU3 - CIF, PDPM138H-5U, PDPM138H-R, PDPM277H, PDUM160H-B, SY128K160H, SY128K160H-NB, SY128K160H-PD, SY160K160H, SY160K160H-NB, SY160K160H-PD, SY16K48H-PD, SY16K48H-PDNB, SY32K160H, SY32K160H-NB, SY32K160H-PD, SY32K48H-PD, SY32K48H-PDNB, SY32K96H, SY32K96H-NB, SY32K96H-PD, SY48K48H-PD, SY48K48H-PDNB, SY64K160H, SY64K160H-NB, SY64K160H-PD, SY64K96H, SY64K96H-NB, SY64K96H-PD, SY96K160H, SY96K160H-NB, SY96K160H-PD, SY96K96H, SY96K96H-NB, SY96K96H-PD
