Produktbeskrivning
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Viktiga egenskaper

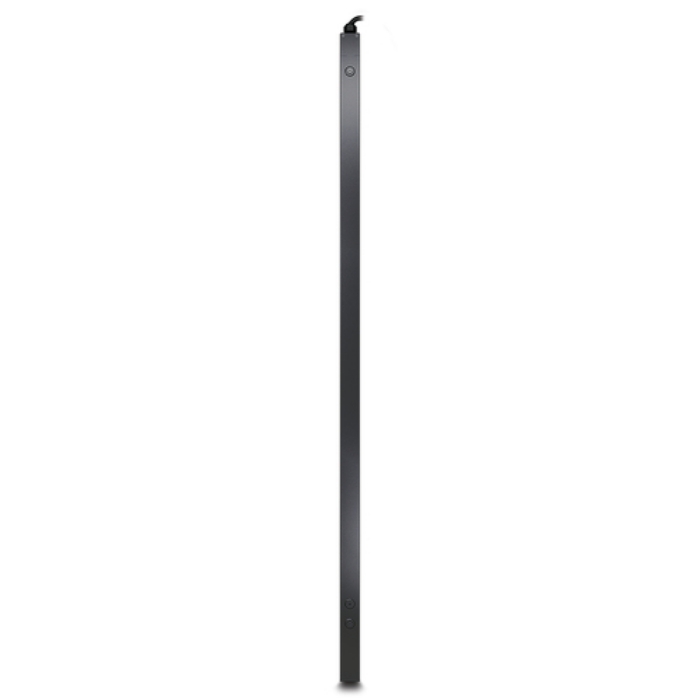

APC AP8853. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m. Monitoring: Current, Power, Voltage. AC input frequency: 50 - 60 Hz, Nominal output voltage: 230 V, Load capacity: 7680 VA
Teknisk specifikation
Design
| PDU types | Metered |
|---|
| Type | Single-phase |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 42 AC outlet(s) |
|---|
| Power plug | IEC309 |
|---|
| AC outlet types | C13 coupler,C19 coupler |
|---|
| Input connection type | IEC 309 32A 2P+E |
|---|
| Output connections | 36x IEC 320 C13
6x IEC 320 C19 |
|---|
Features
| Cable length | 3 m |
|---|
| Certification | RoHS, REACH
IEC 60950,VDE |
|---|
Management features
| Monitoring | Current,Power,Voltage |
|---|
Power
| AC input frequency | 50 - 60 Hz |
|---|
| Nominal output voltage | 230 V |
|---|
| Load capacity | 7680 VA |
|---|
| Maximum input current per phase | 32 A |
|---|
| Maximum total current draw per phase | 32 A |
|---|
| Maximum power | 7680 W |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 44 mm |
|---|
| Height | 1791 mm |
|---|
| Weight | 6930 g |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Technical details
| Total carbon footprint (kg of CO2e) | 28921.23 |
|---|
