Produktbeskrivning

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager



Viktiga egenskaper

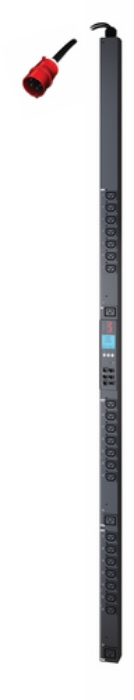

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Cable length: 1.83 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Metered,Metered-by-outlet,Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler,C19 coupler

Cable length	1.83 m
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE

Monitoring	Current,Power,Voltage
Outlet control	Lock-out,Recycle,Turn off,Turn on

Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Load capacity	11040 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	11040 W

Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8230 g

Package weight	10500 g
Package width	162 mm
Package depth	117 mm
Package height	2038 mm

Operating temperature (T-T)	-5 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	RoHS
Total carbon footprint (kg of CO2e)	10364.02
