Produktbeskrivning

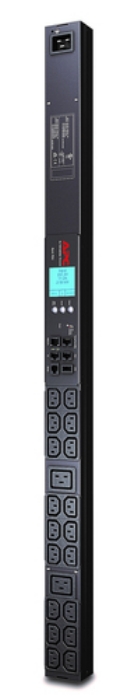

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.



Viktiga egenskaper

APC AP8858. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 20 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC-320 C20. Monitoring: Current, Power, Voltage. Nominal input voltage: 230 V, AC input frequency: 50 - 60 Hz, Load capacity: 3680 VA. Certification: CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH



Teknisk specifikation

PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	20 AC outlet(s)
AC outlet types	C13 coupler,C19 coupler
Input connection type	IEC-320 C20
Output connections	18x IEC 320 C13 2x IEC 320 C19

Certification	CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH

Monitoring	Current,Power,Voltage

Nominal input voltage	230 V
AC input frequency	50 - 60 Hz
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W

Width	56 mm
Depth	44 mm
Height	902 mm
Weight	2930 g

Package weight	4200 g
Package width	162 mm
Package depth	107 mm
Package height	1124 mm

Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %

Total carbon footprint (kg of CO2e)	12787.89
