Produktbeskrivning

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.



Viktiga egenskaper

APC AP8881. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Metered
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	42 AC outlet(s)

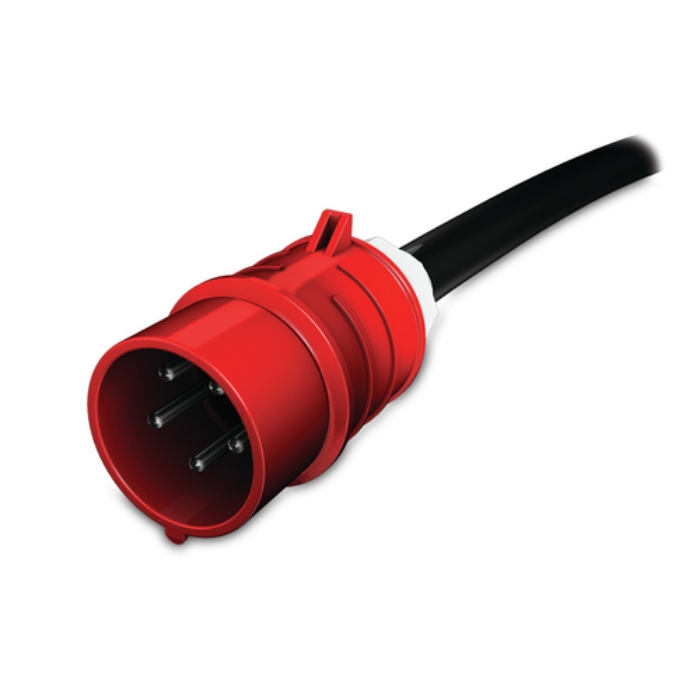

Power plug	IEC309
AC outlet types	C13 coupler,C19 coupler
Input connection type	IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections	36x IEC 320 C13 6x IEC 320 C19

Cable length	1.83 m
Certification	CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH

Monitoring	Current,Power,Voltage

Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Load capacity	11040 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	11000 W

Width	56 mm
Depth	44 mm
Height	1791 mm
Weight	6380 g

Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %

Total carbon footprint (kg of CO2e)	41106.13
