Produktbeskrivning

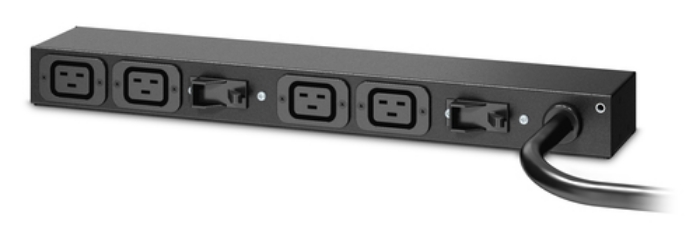

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.



Viktiga egenskaper

APC AP6032A. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 4 AC outlet(s), AC outlet types: C19 coupler, Power plug: IEC 60309. Cable length: 3.65 m. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: VDE, CE



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black

AC outlets quantity	4 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C19 coupler

Cable length	3.65 m
Certification	VDE, CE

Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	200-240 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum power	7680 W

Width	4.36 mm
Depth	9.29 mm
Height	43.81 mm
Weight	2780 g

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS
