Produktbeskrivning

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.



Viktiga egenskaper

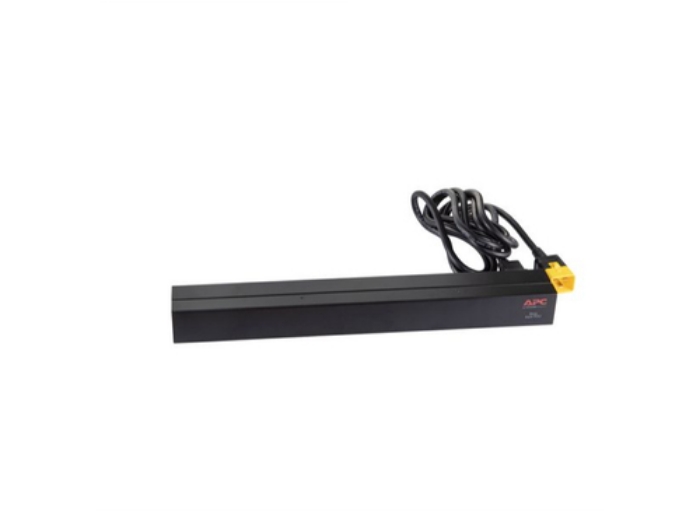

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Load capacity: 3680 VA, Maximum input current per phase: 16 A, Maximum power: 3680 W. Certification: cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black

AC outlets quantity	12 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Output connections	(12) IEC 320 C13

Cable length	2.5 m
Certification	cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE

Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum power	3680 W

Width	447 mm
Depth	57.2 mm
Height	44.5 mm
Weight	2050 g

Package weight	3640 g
Package width	464 mm
Package depth	229 mm
Package height	70 mm

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %

Total carbon footprint (kg of CO2e)	55.19
