Produktbeskrivning

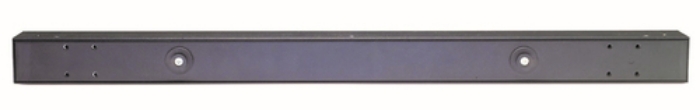

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.



Viktiga egenskaper

APC Basic Rack PDU AP9572. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 15 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Nominal input voltage: 23 V, Output voltage: 230 V, Load capacity: 3680 VA. Width: 44 mm, Depth: 44 mm, Height: 620 mm



Teknisk specifikation

PDU types	Basic
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	15 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C20
Output connections	(15) IEC 320 C13

Cable length	2.5 m

Nominal input voltage	23 V
Output voltage	230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W

Width	44 mm
Depth	44 mm
Height	620 mm
Weight	2000 g

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
