Produktbeskrivning

Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities



Viktiga egenskaper

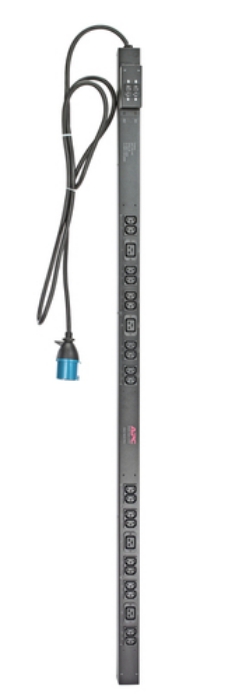

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3050 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Width: 56 mm, Depth: 44 mm, Height: 1619 mm



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Input connection type	IEC 309 32A
Output connections	(20) IEC 320 C13 (4) IEC 320 C19
I/O ports	(20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A

Cable length	3050 m

Nominal input voltage	230 V
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Maximum power	7680 W

Width	56 mm
Depth	44 mm
Height	1619 mm
Weight	5570 g

Package weight	6480 g
Package width	152 mm
Package depth	127 mm
Package height	2134 mm

Operating temperature (T-T)	-25 - 65 °C
Storage temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
