Produktbeskrivning
Toolless Mounting Capabilities
Units do not require additional tools to mount into APC NetShelter VX, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter VX enclosures.
Viktiga egenskaper

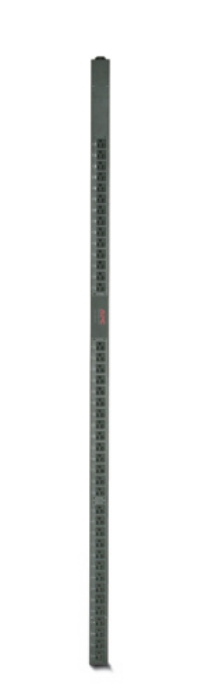

APC Rack PDU,Basic,ZeroU,5.7kW,120V. Product colour: Black. Input connection type: NEMA L21-20P, Output connections: 42x NEMA 5-20R. Cable length: 3.05 m. Nominal input voltage: 208 V, AC input frequency: 50 - 60 Hz, Nominal output voltage: 120 V. Certification: cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS
Teknisk specifikation
Design
| Product colour | Black |
|---|
Ports & interfaces
| Input connection type | NEMA L21-20P |
|---|
| Output connections | 42x NEMA 5-20R |
|---|
Features
| Cable length | 3.05 m |
|---|
| Certification | cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed, RoHS |
|---|
Power
| Nominal input voltage | 208 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Nominal output voltage | 120 V |
|---|
| Load capacity | 5700 VA |
|---|
| Maximum input current per phase | 20 A |
|---|
| Maximum total current draw per phase | 16 A |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 44 mm |
|---|
| Height | 1778 mm |
|---|
| Weight | 5570 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
