Produktbeskrivning

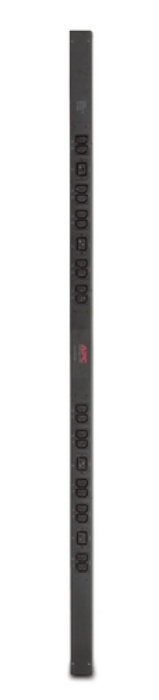

APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment.

- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.



Viktiga egenskaper

APC Basic Rack PDU. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A. Cable length: 3.05 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Load capacity: 3680 VA. Certification: CCC, CE, VDE



Teknisk specifikation

PDU types	Basic
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler,C19 coupler
Input connection type	IEC 309 16A
Output connections	20x IEC 320 C13 4x IEC 320 C19

Cable length	3.05 m
Certification	CCC, CE, VDE

Nominal input voltage	230 V
Nominal output voltage	230 V
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W

Width	56 mm
Depth	44 mm
Height	1619 mm
Weight	5570 g

Package weight	6480 g
Package width	152 mm
Package depth	127 mm
Package height	2134 mm

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
