Produktbeskrivning

Marketing Features

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.



Viktiga egenskaper

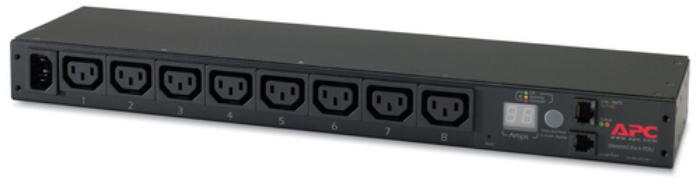

APC AP7820B. PDU types: Metered, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 1.98 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 208-230 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Metered
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black

AC outlets quantity	8 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C14

LED indicators	Yes
Cable length	1.98 m
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI

Monitoring	Current,Power,Voltage

Nominal input voltage	208-230 V
AC input frequency	50 - 60 Hz
Maximum current	15 A
Nominal output voltage	208-230 V
Load capacity	2300 VA
Maximum input current per phase	15 A
Maximum total current draw per phase	10 A
Maximum power	2300 W

Width	444 mm
Depth	102 mm
Height	44 mm
Weight	1730 g

Package weight	2910 g
Package width	470 mm
Package depth	337 mm
Package height	64 mm

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	RoHS
