Produktbeskrivning

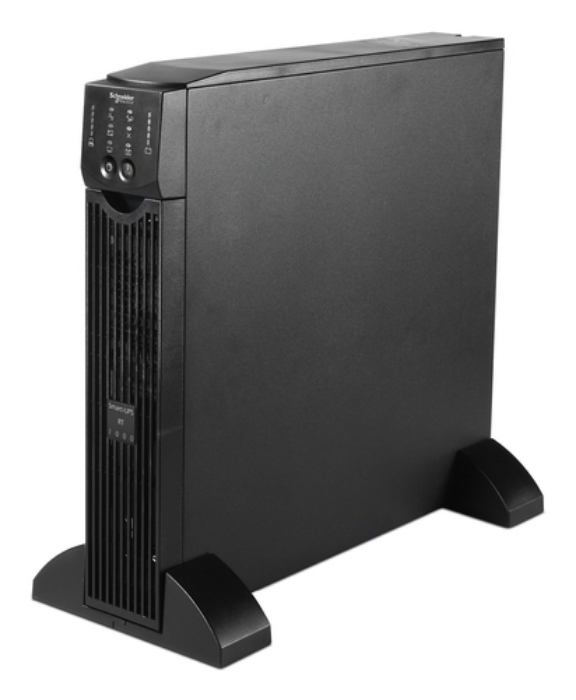

Proven Industrial UPS SR11KXIET provides power protection for control applications and harsh environments.



Viktiga egenskaper

APC Schneider Electric On-Line UPS 1000VA, 230V, 6x IEC 60320 C13 & 2x IEC Jumpers outlets. UPS topology: Double-conversion (Online), Output power capacity: 0.75 kVA, Output power: 700 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Typical backup time at full load: 13 min, Typical backup time at half load: 31 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Compliance certificates: C-TICK, CE, VDE



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	0.75 kVA
Output power	700 W
Waveform	Sine
Input operation voltage (min)	160 V
Input operation voltage (max)	280 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	420 J
Heat dissipation	324 BTU/h
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3 %
Noise level	50 dB
Audible alarm(s)	Yes
Country of origin	Philippines

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	6 AC outlet(s)
Number of output IEC jumpers	2
SmartSlot	Yes

Battery technology	Lead-Acid
Typical backup time at full load	13 min
Typical backup time at half load	31 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Automatic battery test	Yes
Cold start	Yes

Form factor	Tower
Product colour	Black
Cable length	1.83 m
Display type	LCD
LED indicators	Status

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	C-TICK,CE,VDE

Width	85 mm
Depth	483 mm
Height	432 mm
Weight	23000 g
Package width	630 mm
Package depth	594 mm
Package height	286 mm
Package weight	27800 g

Cables included	RS-232
Manual	Yes
Quick installation guide	Yes
