Produktbeskrivning

Power anytime, anywhere

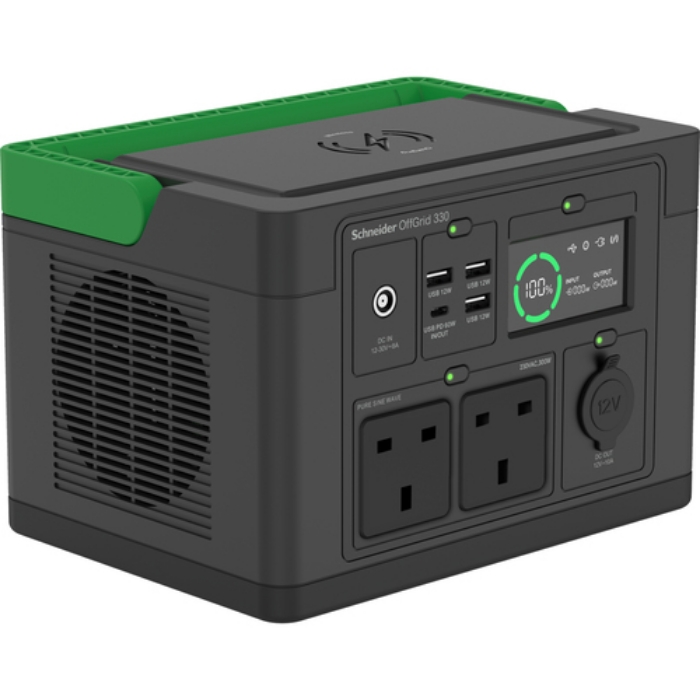

The Schneider Electric OffGrid Portable Power Station is designed for outdoor enthusiasts and home users to provide consistent and reliable (emergency) power anytime, anywhere, just when you need it the most. With a combined power of 531W (300W(AC) + 231W(DC)), you can easily power multiple devices at the same time. Thanks to the wireless charging pad (15W), you can also easily charge devices wirelessly.

Portable
Weighing 3.3 kg, the portable power supply is light, compact and easy to lift thanks to the handle without sacrificing sturdiness.

Outputs and power
The PPS330-UK has a large number of connection options, divided over 4 groups:
-2 BS1363 UK outlets (300W, 600W peak) pure sine wave alternating current (AC)
-3 USB-A ports (3x 5V-2.4A 12W) (DC)
-1 USB-C ports (1x PowerDelivery 60W in/out) (DC)
-1 12V car connection (120W) (DC)
-1 Wireless charging platform (15W) (DC)

Max power per group:
-Sockets (300W, 600W temporary peak)
-USB ports (96W)
-12V (120W)
-Wireless (15W)

Charging
The PPS330-UK can be charged in 3 ways, the USB-C port the 12V car plug, or the optional solar panel. It takes about 5 hours to fully charge the device via the USB-C port, or 4.5 hours by connecting it to the optional 100W solar panel. (PSP100) When the PPS Offgrid is charging, it can even supply power to connected devices at the same time. If the mains voltage suddenly fails due to a power failure, or you stop charging the PPS and take it offgrid, it will continue to supply power to the connected equipment.

Battery life
The battery life depends on the load, the sum of the power supplied to all connected devices. The expected battery life can easily be read in the runtime table, see images.

Summary;
Load in Watts vs. battery life:
50W = 6h
80W = 4h
150W = 103 min.
300W = 47 min.

LED panel with SOS mode
The LED light panel makes it easy to use this portable power station in dark environments such as off-grid, at night at the campsite or during a power outage. Thanks to the SOS flashing mode of the LED panel, you can easily attract attention in an emergency.

Sustainable
Designed with sustainability in mind, this portable power supply has a housing made of 60% recycled plastic and comes in sustainable packaging. The warranty is 2 years.



Viktiga egenskaper

APC SE OffGrid Portable Power Station 330 - Li-Ion battery, LCD, 2x UK socket, 3x USB-A, 1x USB-C, 1x 12V, wireless charger. Charging source: DC, USB, Battery capacity: 332 Wh, Fast charging technology: Power Delivery. Product colour: Black, Green, Housing material: Plastic, Display type: LCD. Input interface: DC + USB Type-C, AC outlets quantity: 2 AC outlet(s), AC outlet types: Type G (BS 1363). Width: 162.6 mm, Depth: 221 mm, Height: 152.4 mm. Cables included: Cigar lighter



Teknisk specifikation

Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	332 Wh
Charging source	DC,USB
Fast charging	Yes
Fast charging technology	Power Delivery
Waveform	Pure sine
Cigar lighter output power	120 W
USB Type-A output power	12 W
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	60 W
Wireless charging	Yes

Product colour	Black,Green
Housing material	Plastic
Built-in display	Yes
Display type	LCD
LED indicators	Yes
Carrying handle(s)	Yes

Input interface	DC + USB Type-C
AC outlets quantity	2 AC outlet(s)
AC outlet types	Type G (BS 1363)
USB port	Yes
USB connector type	USB Type-A,USB Type-C
USB Type-A output ports	3
USB Type-C ports quantity	1
Cigar lighter output	1

Width	162.6 mm
Depth	221 mm
Height	152.4 mm
Weight	3300 g

Package width	238 mm
Package depth	300 mm
Package height	280 mm
Package weight	6300 g

Cables included	Cigar lighter
Manual	Yes
Adapter included	Yes

Storage temperature (T-T)	-20 - 70 °C

Total carbon footprint (kg of CO2e)	37984
