Produktbeskrivning

Power anytime, anywhere

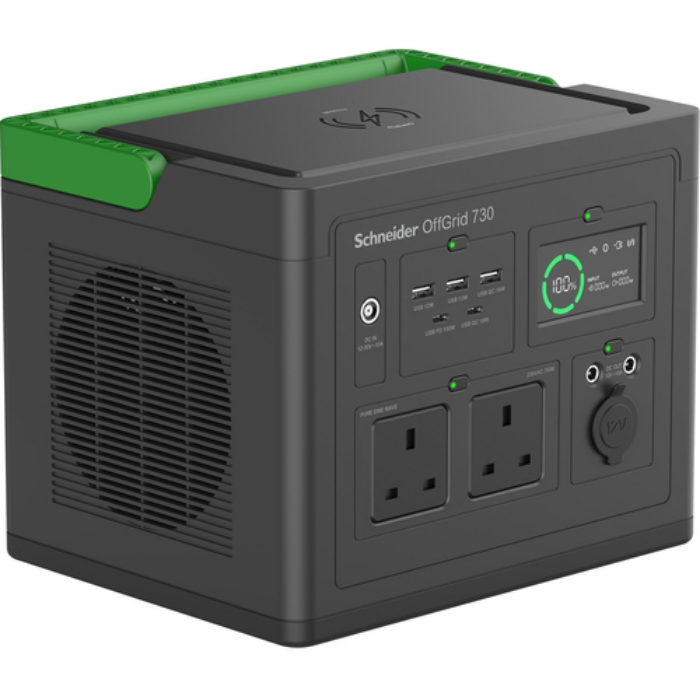

The Schneider Electric OffGrid Portable Power Station is designed for outdoor enthusiasts and home users to provide consistent and reliable (emergency) power anytime, anywhere, just when you need it most. With a combined power of 995W (700W(AC) + 295W(DC)), you can easily power multiple devices at the same time. Thanks to the wireless charging pad (15W), you can also easily charge devices wirelessly.

Portable
Weighing 6.4 kg, the portable power supply is light, compact and easy to lift thanks to the handle without sacrificing sturdiness.

Outputs and power
The PPS730-UK has a large number of connection options, divided over 4 groups:
-2 Schuko (NL) sockets (700W, 1400W peak) pure sine wave alternating current (AC)
-3 USB-A ports (2x 5V-2.4A 12W, 1x QuickCharge 18W) (DC)
-2 USB-C ports (1x PowerDelivery 100W, 1x QC 18W) (DC)
-2 12V DC5521 outputs (60W) (DC)
-1 12V car connection (120W) (DC)
-1 Wireless charging platform (15W) (DC)

Max power per group:
-Sockets (700W, 1400W temporary peak)
-USB ports (160W)
-12V (120W)
-Wireless (15W)

Charging
The PPS730-UK can be charged in 3 ways, via the wall socket, the 12V car plug or the optional solar panel. It takes about 9 hours to fully charge the device via the wall socket, or 4.5 hours by connecting it to the optional 200W solar panel. (PSP200) When the PPS Offgrid is charging, it can even supply power to connected devices at the same time. If the mains voltage suddenly fails due to a power failure, or you stop charging the PPS and take it offgrid, it will continue to supply power to the connected equipment.

Battery life
The battery life depends on the load, the sum of the power supplied to all connected devices. The expected battery life can easily be read in the runtime table, see images.

Summary; Load in Watts vs. battery life:
50W = 11h
80W = 8h
350W = 97 min.
700W = 45 min.

LED panel with SOS mode
The LED light panel makes it easy to use this portable power station in dark environments such as off-grid, at night at the campsite or during a power outage. Thanks to the SOS flashing mode of the LED panel, you can easily attract attention in an emergency.

Sustainable
Designed with sustainability in mind, this portable power supply has a housing made of 60% recycled plastic and comes in sustainable packaging. The warranty is 2 years.



Viktiga egenskaper

APC SE OffGrid Portable Power Station 730 - Li-Ion battery, LCD, 2x UK outlets, 3x USB-A, 2x USB-C, 3x 12V, wireless charger. Charging source: AC, DC, Battery capacity: 738 Wh, Fast charging technology: Power Delivery, Quick Charge 1.0. Product colour: Black, Green, Housing material: Plastic, Display type: LCD. Input interface: DC, AC outlets quantity: 2 AC outlet(s), AC outlet types: Type G (BS 1363). Width: 198.1 mm, Depth: 203.2 mm, Height: 248.9 mm. Cables included: AC, Cigar lighter



Teknisk specifikation

Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	738 Wh
Charging source	AC,DC
Fast charging	Yes
Fast charging technology	Power Delivery,Quick Charge 1.0
DC input power	200 W
Waveform	Pure sine
Input voltage	190 - 265 V
USB Type-A output power	18 W
USB Type-C output power	100 W
Wireless charging	Yes

Product colour	Black,Green
Housing material	Plastic
Built-in display	Yes
Display type	LCD
LED indicators	Yes
Carrying handle(s)	Yes

Input interface	DC
AC outlets quantity	2 AC outlet(s)
AC outlet types	Type G (BS 1363)
USB port	Yes
USB connector type	USB Type-A,USB Type-C
USB Type-A output ports	3
USB Type-C ports quantity	2
Cigar lighter output	1
DC output port type	5521
Number of DC output quantity	2

Width	198.1 mm
Depth	203.2 mm
Height	248.9 mm
Weight	6400 g

Package width	238 mm
Package depth	322 mm
Package height	327 mm
Package weight	7100 g

Cables included	AC,Cigar lighter
Manual	Yes

Storage temperature (T-T)	-20 - 70 °C

Total carbon footprint (kg of CO2e)	288
