Produktbeskrivning

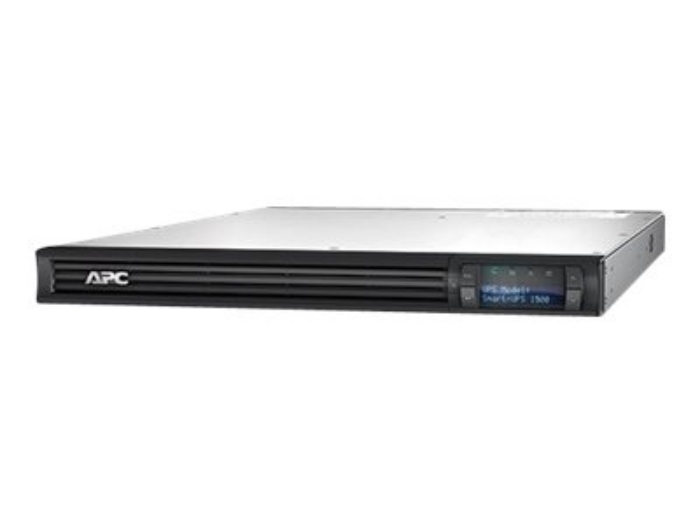

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS features a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.



Egenskaper

Intuitive LCD interface
It provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Cold-start capable
It provides temporary battery power when the utility power is out.

Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Disconnected battery notification
It warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Adjustable voltage-transfer points
It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
It provides notification of changing utility power and UPS conditions.

User-replaceable batteries
It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Boost and Trim Automatic Voltage Regulation (AVR)
It gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Adjustable voltage sensitivity
It provides the ability to adapt the power conditioner for optimal performance in specific power environments or generator applications.

Predicitive failure notification
It provides early-warning fault analysis ensuring proactive component replacement.



Teknisk specifikation

Typ av enhet	UPS - kan monteras i rack
Höjd (U-format)	1U
Färg	Svart

UPS-teknik	Interaktiv
Inspänning	AC 230 V
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	4 x power IEC 60320 C13 2 x IEC-kontakt
Utspänning	AC 230 V ± 5%
Max elektrisk ström	12 A
Effektkapacitet	1000 Watt / 1500 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	540 joule
Kretsskydd	Strömbrytare

Antal	1
Teknik	Bly-syra
Runtime (upp till)	4.8 min vid full laddning 16.6 min vid halv maskin
Laddningstid	4 timme/timmar
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x hantering (RS-232) - RJ-45 1 x USB - 4-stifts USB typ B
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	Strömkabel - extern - 2.44 m Seriell kabel - extern USB-kabel - extern
Rackmonteringssats	Inkluderat
Egenskaper	Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), LED-indikatorer, kallstartfunktion, automatiskt självtest
Standarder som följs	UL 1449, RoHS, REACH

Medföljande programvara	APC PowerChute Business Edition

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	46 dBA

Bredd	43.2 cm
Djup	66.5 cm
Höjd	44 cm
Vikt	24.09 kg

Emballagets bredd	57.5 cm
Emballagets djup	79.4 cm
Emballagets höjd	20 cm
Emballagets vikt	29.09 kg
