Produktbeskrivning

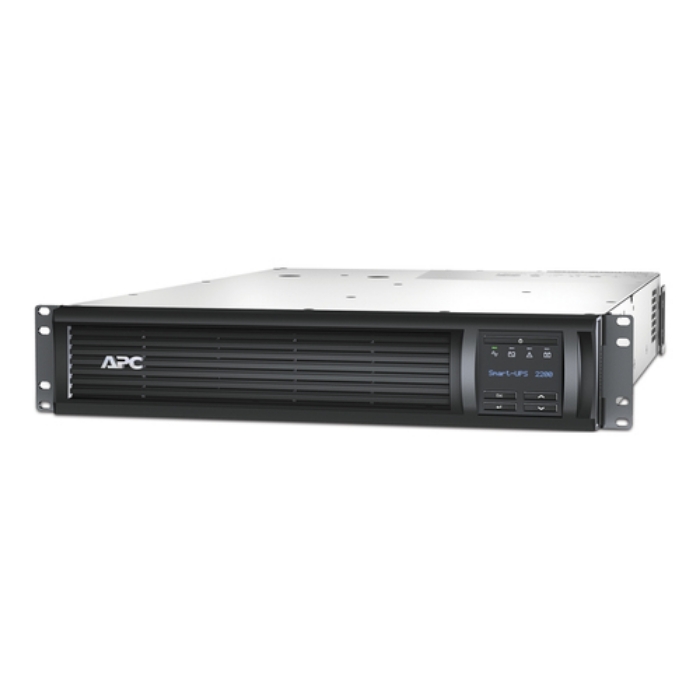

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS with 2-post rack kit provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.



Viktiga egenskaper

APC Smart-UPS, Line Interactive, 2200VA, Rackmount, 120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 480 Ah, Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 0U. Compliance certificates: REACH, RoHS, WEEE, Certification: CSA, REACH, RoHS, WEEE



Teknisk specifikation

UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Output power	1980 W
Waveform	Sine
Input operation voltage (min)	100 V
Input operation voltage (max)	290 V
Input frequency	50/60 Hz
Output operation voltage (max)	120 V
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	1366 J
Response time	6 ms
Noise level	55 dB
Audible alarm(s)	Yes

AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
AC outlets quantity	10 AC outlet(s)

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	480 Ah
Battery life (max)	5 year(s)
Battery recharge time	4 h

Form factor	Rackmount
Product colour	Black
Rack capacity	0U
Control type	Buttons
Display type	LED
LED indicators	Yes
Certification	CSA, REACH, RoHS, WEEE

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	REACH,RoHS,WEEE
Doesn't contain	Mercury
Warranty period	3 year(s)

Width	432 mm
Depth	683 mm
Height	86 mm
Weight	42400 g
Package width	980 mm
Package depth	600 mm
Package height	254 mm
Package weight	49730 g

Manual	Yes
