Produktbeskrivning

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Manage your Smart-UPS
Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines in the correct manner and the preconfigured boot sequence ensures that they are turned on again.

*For HCI and virtual machine support an additional license is required:
1 year: SWPCNS1Y-DIGI
Up to (Replace bold number in article number with desired variant)
6 years: SWPCNS6Y-DIGI

Remote management and monitoring of your network
The network card can be managed externally via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract
The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:
• New and improved functions
• Security updates
• Advanced support
(The functionality of the support contract is included free of charge in the first year of the UPS)

*The above license and available in the variants:
1 year: SWNMC3SU-1Y-DIGI
Up to (Replace the bold number in the article number with the desired variant)
6 years: SWNMC3SU-6Y-DIGI

Rack/tower convertible

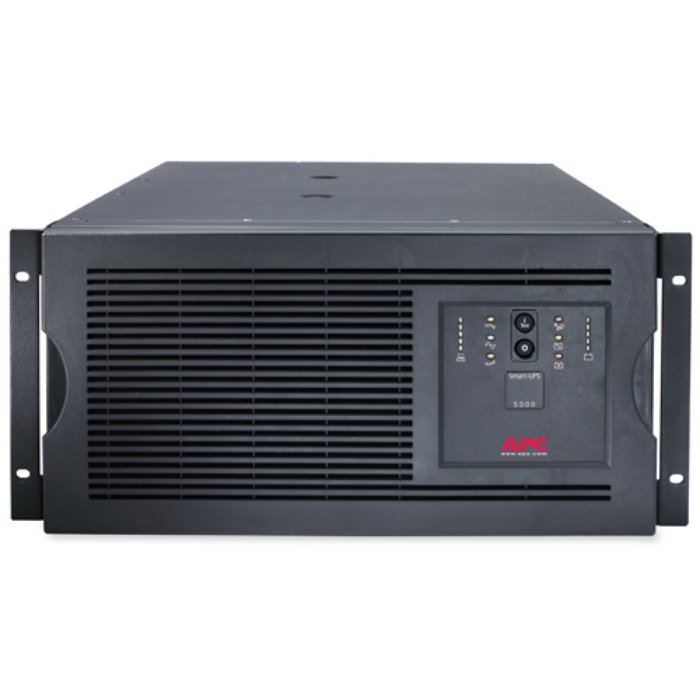

The APC Smart-UPS SUA5000RMI5U is rack/tower convertible. Because both the feet and the rack mount brackets are included, you can mount it in a rack or place it upright.

Extend the lifespan
The SUA5000RMI5U contains two internal battery cartridges (RBC55) and these can be easily, safely and independently replaced by the user. This without having to switch off the APC UPS or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.

Warranty extension
The factory warranty of the SUA5000RMI5U is 2 years and can be upgraded to 5 years with the APC service pack (WBEXTWAR3YR-SP-05).



Viktiga egenskaper

APC Smart-UPS SUA5000RMI5U - 5000VA, 8x C13, 2x C19 outlet, NMC, Rackmount/Tower. UPS topology: Line-Interactive, Output power capacity: 5 kVA, Output power: 4000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hard Wire 3-wire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1632 VAh, Typical backup time at full load: 9.4 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 5U. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI



Teknisk specifikation

UPS topology	Line-Interactive
Output power capacity	5 kVA
Output power	4000 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency regulation	47 - 53 Hz
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	480 J
Hold time (max)	4 ms
Hold time (min)	2 ms
Number of output phases	1
Efficiency	96 %
Noise level	53 dB
Surge protection	Yes
Audible alarm(s)	Yes
Auto-restart	Yes

AC outlet types	C13 coupler,C19 coupler
AC outlets quantity	10 AC outlet(s)
Number of output IEC jumpers	4
Ethernet LAN (RJ-45) ports	0
SmartSlot	Yes
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	1632 VAh
Typical backup time at full load	9.4 min
Typical backup time at half load	26.7 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes

Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	5U
LED indicators	Battery replacement
Certification	C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 9000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	RoHS
Total carbon footprint (kg of CO2e)	4487.43

Width	483 mm
Depth	660 mm
Height	222 mm
Weight	97730 g
Package width	610 mm
Package depth	762 mm
Package height	635 mm
Package weight	106820 g

Rack mount kit	Yes
Management card included	Yes
Cables included	RS-232
Manual	Yes
Quick installation guide	Yes
Software CD	Yes

Products per pallet	4 pc(s)
Harmonized System (HS) code	85078000
Products per master (outer) case	1 pc(s)

Nominal output voltage	230 V
Nominal input voltage	230 V
