Produktbeskrivning

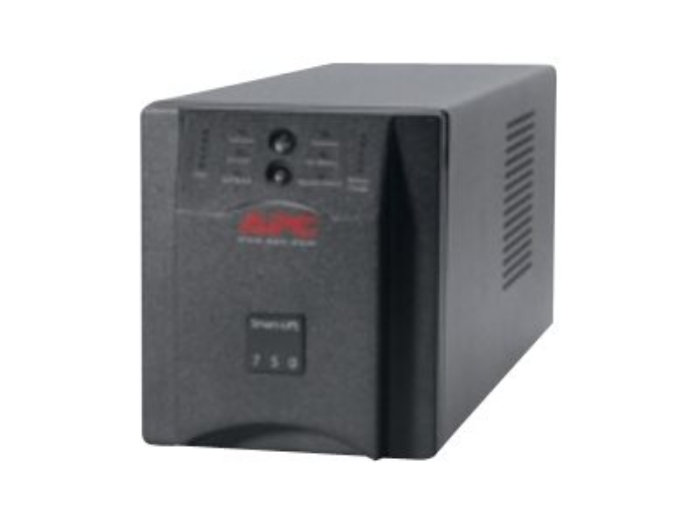

APC Smart-UPS protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATMs. Smart-UPS is a UPS businesses trust for their critical applications.



Egenskaper

Battery replacement without tools
It allows quick, easy battery replacement.

Front-access servicing
It simplifies installation and maintenance while minimizing space requirements.

Boost and trim automatic voltage regulation (AVR)
It gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
It prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
It warns when a battery is not available to provide backup power.

Network manageable
It provides remote management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial connectivity
It provides management of the UPS via a serial port.

User-replaceable batteries
It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Predictive failure notification
It provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers
It enables a quick recovery from overload events.

Battery failure notification
It provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Adjustable voltage-transfer points
It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.



Teknisk specifikation

Typ av enhet	UPS - extern
Batterityp	Intern
Färg	Svart

UPS-teknik	Interaktiv
Inspänning	AC 230 V
Inspänningens område	AC 160 - 286 V
Inspänningens område (justeringsbart)	AC 151 - 302 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	6 x power IEC 60320 C13
Utspänning	AC 220/230/240 V ± 5% - 50/60 Hz
Effektkapacitet	500 Watt / 750 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	340 joule

Antal	1
Teknik	Bly-syra
Runtime (upp till)	4.8 min vid full laddning
Laddningstid	3 timmar

Gränssnitt för fjärradministration	USB

Gränssnitt	1 x hantering (USB) - 4-stifts USB typ B
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	USB-kabel
Egenskaper	Hörbart larm, LED-indikatorer
Standarder som följs	UL, C-Tick, GOST, UL 1449, VDE, IEC 60950, EN 50091-2, EN 50091-1

Medföljande programvara	Drivrutiner och hjälpprogram

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	55 dBA

Bredd	13.7 cm
Djup	35.8 cm
Höjd	15.7 cm
Vikt	13.2 kg

Emballagets bredd	27.3 cm
Emballagets djup	49.5 cm
Emballagets höjd	27.9 cm
Emballagets vikt	14.6 kg
