Produktbeskrivning

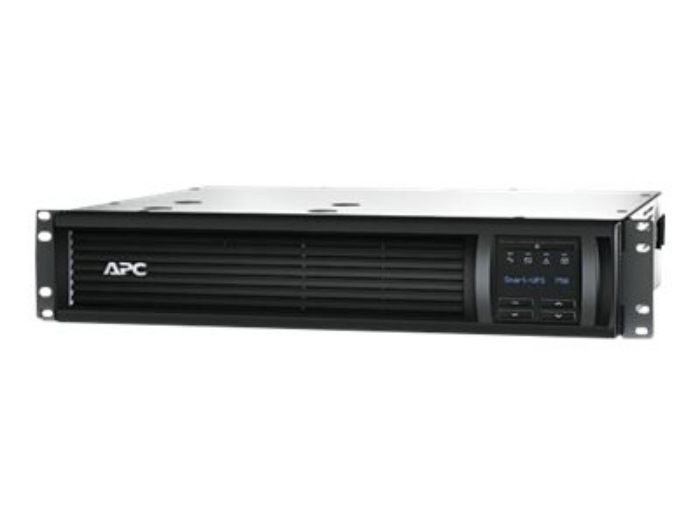

APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.



Egenskaper

● Intuitive LCD interface - provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
● Predictive replace battery date - dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
● Energy meter - provides actual kilowatt hours of usage for energy conscious users
● Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronics
● Single switched outlet group - single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
● High online efficiency - reduces utlility costs, generates less heat
● SmartSlot - customize UPS capabilities with management cards
● Cold-start capable - provides temporary battery power when the utility power is out
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Network manageable - provides remote power management of the UPS over the network
● Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
● Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
● Disconnected battery notification - warns when a battery is not available to provide backup power
● Network manageable - provides remote power management of the UPS over the network
● Audible alarms - actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
● LED status indicators - quickly understand unit and power status with visual indicators
● Serial connectivity - provides management of the UPS via a serial port
● Adjustable voltage-transfer points - maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
● Adjustable voltage sensitivity - provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications



Teknisk specifikation

Typ av enhet	UPS - kan monteras i rack
Höjd (U-format)	2U
Färg	Svart
Kombinerad med	APC UPS Network Management Card

UPS-teknik	Interaktiv
Inspänning	AC 230 V
Inspänningens område	AC 160 - 286 V
Inspänningens område (justeringsbart)	AC 151 - 302 V
Erforderlig frekvens	50 Hz ± 3Hz
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	Power IEC 60320 C13
Utspänning	AC 230 V ± 5%
Effektkapacitet	500 Watt / 750 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	459 joule
Kretsskydd	Strömbrytare

Teknik	Bly-syra
Runtime (upp till)	5.5 min vid full laddning 16 min vid halv maskin
Laddningstid	3 timmar
Transfertid	2 ms
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	Ethernet, RS-232, USB

Gränssnitt	1 x hantering (RS-232) - RJ-45 1 x hantering (USB) - 4-stifts USB typ B Hantering (USB) - RJ-45
Expansionskortplatser	1 (totalt)/ 0 (ledig) x SmartSlot

Inkluderade tillbehör	Rackmonteringsskenor, temperatursond
Medföljande kablar	Seriell kabel - extern USB-kabel - extern
Rackmonteringssats	Inkluderat
Egenskaper	Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), LED-indikatorer, kallstartfunktion, automatiskt självtest, prediktiv felnotifiering, hotswap-batterier, energimätare
Standarder som följs	VDE, IEC 62040-2, RoHS, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Medföljande programvara	APC PowerChute Business Edition

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	42 dBA

Bredd	43.2 cm
Djup	40.6 cm
Höjd	8.9 cm
Vikt	17.24 kg

Emballagets bredd	54.6 cm
Emballagets djup	58.4 cm
Emballagets höjd	24.1 cm
Emballagets vikt	21.18 kg
