Produktbeskrivning

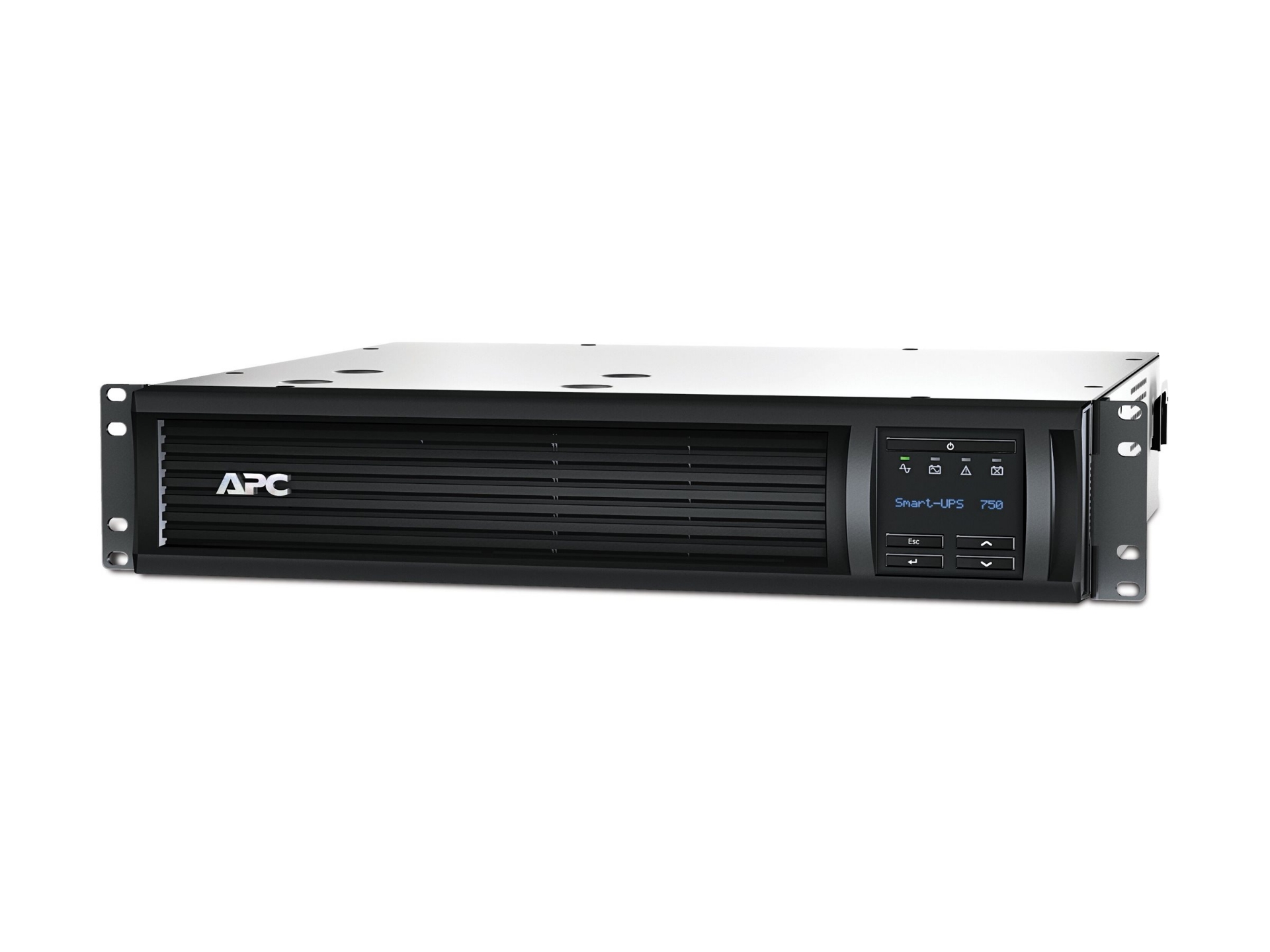

APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.



Egenskaper

● Intuitive LCD interface - provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
● Predictive replace battery date - dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
● Energy meter - provides actual kilowatt hours of usage for energy conscious users
● Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronics
● Single switched outlet group - single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
● High online efficiency - reduces utlility costs, generates less heat
● SmartSlot - customize UPS capabilities with management cards
● Cold-start capable - provides temporary battery power when the utility power is out
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Network manageable - provides remote power management of the UPS over the network
● Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
● Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
● Disconnected battery notification - warns when a battery is not available to provide backup power
● Network manageable - provides remote power management of the UPS over the network
● Audible alarms - actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
● LED status indicators - quickly understand unit and power status with visual indicators
● Serial connectivity - provides management of the UPS via a serial port
● Adjustable voltage-transfer points - maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
● Adjustable voltage sensitivity - provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications



Teknisk specifikation

Typ av enhet	UPS - kan monteras i rack
Höjd (U-format)	2U
Färg	Svart

UPS-teknik	Interaktiv
Inspänning	AC 230 V
Inspänningens område	AC 160 - 286 V
Inspänningens område (justeringsbart)	Växelström 150 - 300 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz ± 3Hz
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	4 x power IEC 60320 C13
Utspänning	AC 230 V 50/60 Hz
Effektkapacitet	500 Watt / 750 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja

Teknik	Bly-syra
Runtime (upp till)	6 min vid full laddning 5 min vid 500 Watt 24 min vid 200 Watt
Laddningstid	3 timmar
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	Ethernet, RS-232, USB

Gränssnitt	1 x hantering (RS-232) - RJ-45 1 x hantering (USB) - 4-stifts USB typ B Hantering (Ethernet) - RJ-45
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Egenskaper	Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), LED-indikatorer, energimätare
Standarder som följs	VDE, EN 62040-2, RCM, EN 62040-1

Medföljande programvara	APC PowerChute Business Edition

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	42 dBA

Bredd	43.2 cm
Djup	40.9 cm
Höjd	8.6 cm
Vikt	21.23 kg

Designat för

P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF102BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7050, NBWL0356A
