Egenskaper
● Green mode - excellent operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
● Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
● LCD status display - provides key UPS status at a glance, multiple status indicators with load and battery bar graphs
● High online efficiency - reduces utility costs, generates less heat
● Cold-start capable - provides temporary battery power when the utility power is out
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
● Disconnected battery notification - warns when a battery is not available to provide backup power
● Network manageable - provides remote power management of the UPS over the network
● Audible alarms - actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
● LED status indicators - quickly understand unit and power status with visual indicators
● Serial connectivity - provides management of the UPS via a serial port
● USB connectivity - provides management of the UPS via a USB port
● Disconnected battery notification - warns when a battery is not available to provide backup power
● Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced
● Predictive failure notification - provides early-warning fault analysis ensuring proactive component replacement
● Resettable circuit breakers - enables a quick recovery from overload events
● Battery failure notification - provides early-warning fault analysis on batteries enabling timely preventive maintenance
● Adjustable voltage-transfer points - maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
● Adjustable voltage sensitivity - provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
● Safety-agency approved - ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
Teknisk specifikation
Allmänt

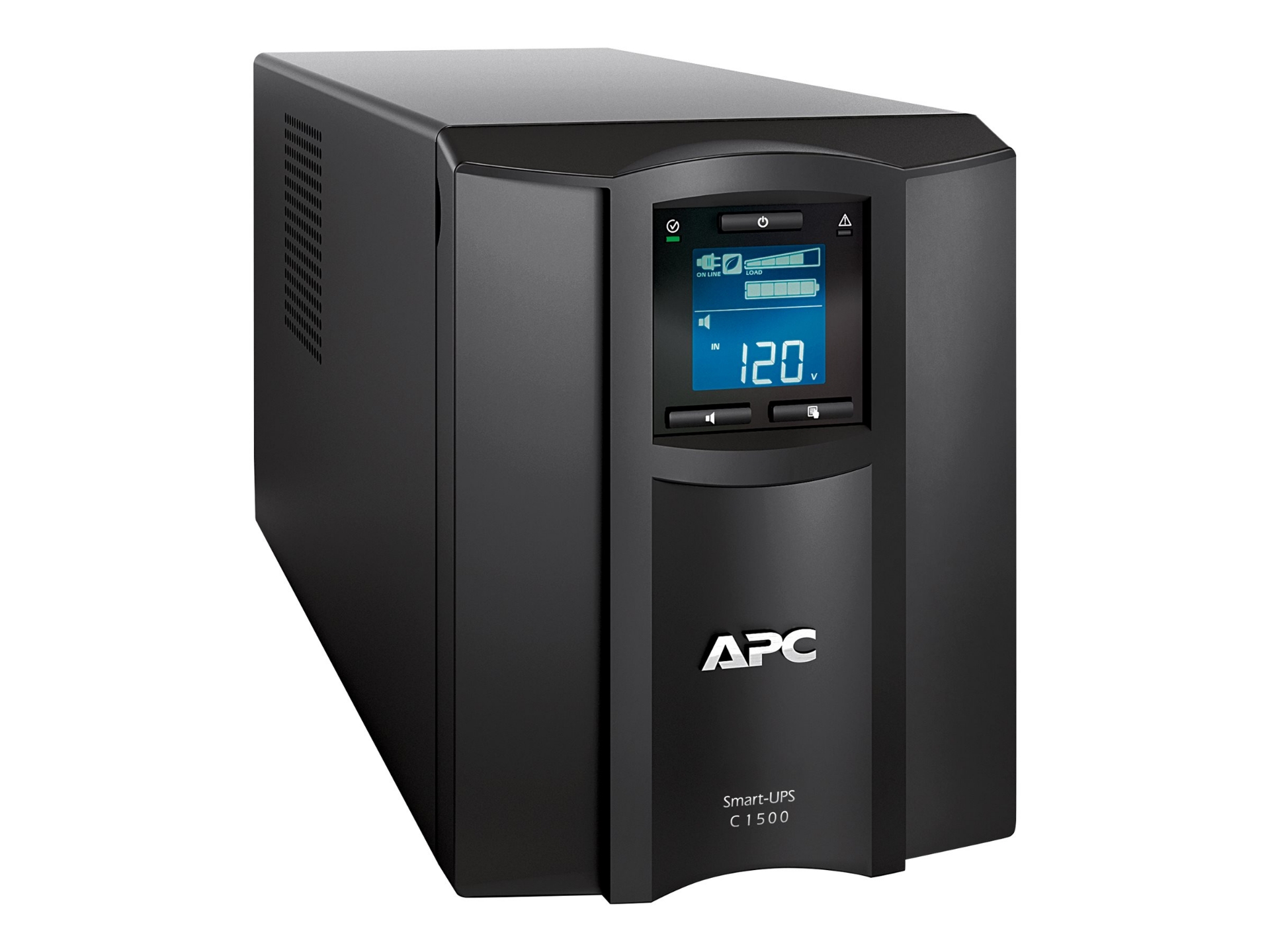

| Typ av enhet | UPS - extern |
|---|
| Färg | Svart |
|---|
| Kombinerad med | APC SmartConnect |
|---|
Nätdel
| UPS-teknik | Interaktiv |
|---|
| Inspänning | AC 230 V |
|---|
| Inspänningens område | Växelström 180 - 287 V |
|---|
| Inspänningens område (justeringsbart) | Växelström 170 - 300 V |
|---|
| Tillhandahållen frekvens | 50/60 Hz ± 3Hz |
|---|
| Erforderlig frekvens | 50/60 Hz ± 3% |
|---|
| Inmatningsanslutningar | 1 x ström IEC 60320 C14 |
|---|
| Kontaktdetaljer för uteffekt | 8 x power IEC 60320 C13 |
|---|
| Utspänning | AC 230 V ± 5% - 50/60 Hz |
|---|
| Effektkapacitet | 900 Watt / 1500 VA |
|---|
| Utvågform | Sinusvåg |
|---|
| Spänningsavledning | Ja |
|---|
| Energivärdering | 459 joule |
|---|
| Kretsskydd | Strömbrytare |
|---|
Batteri
| Antal | 1 |
|---|
| Teknik | Bly-syra |
|---|
| Runtime (upp till) | 4 min vid full laddning
11 min vid halv maskin |
|---|
| Laddningstid | 3 timmar |
|---|
| Transfertid | 6 ms |
|---|
| Egenskaper | Underhållsfri, förseglad, läcksäker |
|---|
Nätverk
| Gränssnitt för fjärradministration | USB |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x hantering - RJ-45
1 x USB - 4-stifts USB typ A |
|---|
Diverse
| Egenskaper | Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), kallstartfunktion, automatisk avstängningsåterställning, automatiskt självtest, hotswap-batterier, Grön funktion, automatisk omstart, temperaturkompenserad batteriladdning |
|---|
| Standarder som följs | CSA, C-Tick, GOST, UL 1778, VDE |
|---|
Programvara / Systemkrav
| Medföljande programvara | APC PowerChute Business Edition |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 2 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 0 - 95% |
|---|
| Ljudnivå | 45 dBA |
|---|
Mått och vikt
| Bredd | 17.1 cm |
|---|
| Djup | 43.9 cm |
|---|
| Höjd | 21.9 cm |
|---|
| Vikt | 24.09 kg |
|---|
Mått och vikt (brutto)
| Emballagets bredd | 32.8 cm |
|---|
| Emballagets djup | 59.5 cm |
|---|
| Emballagets höjd | 37.6 cm |
|---|
| Emballagets vikt | 27.23 kg |
|---|
