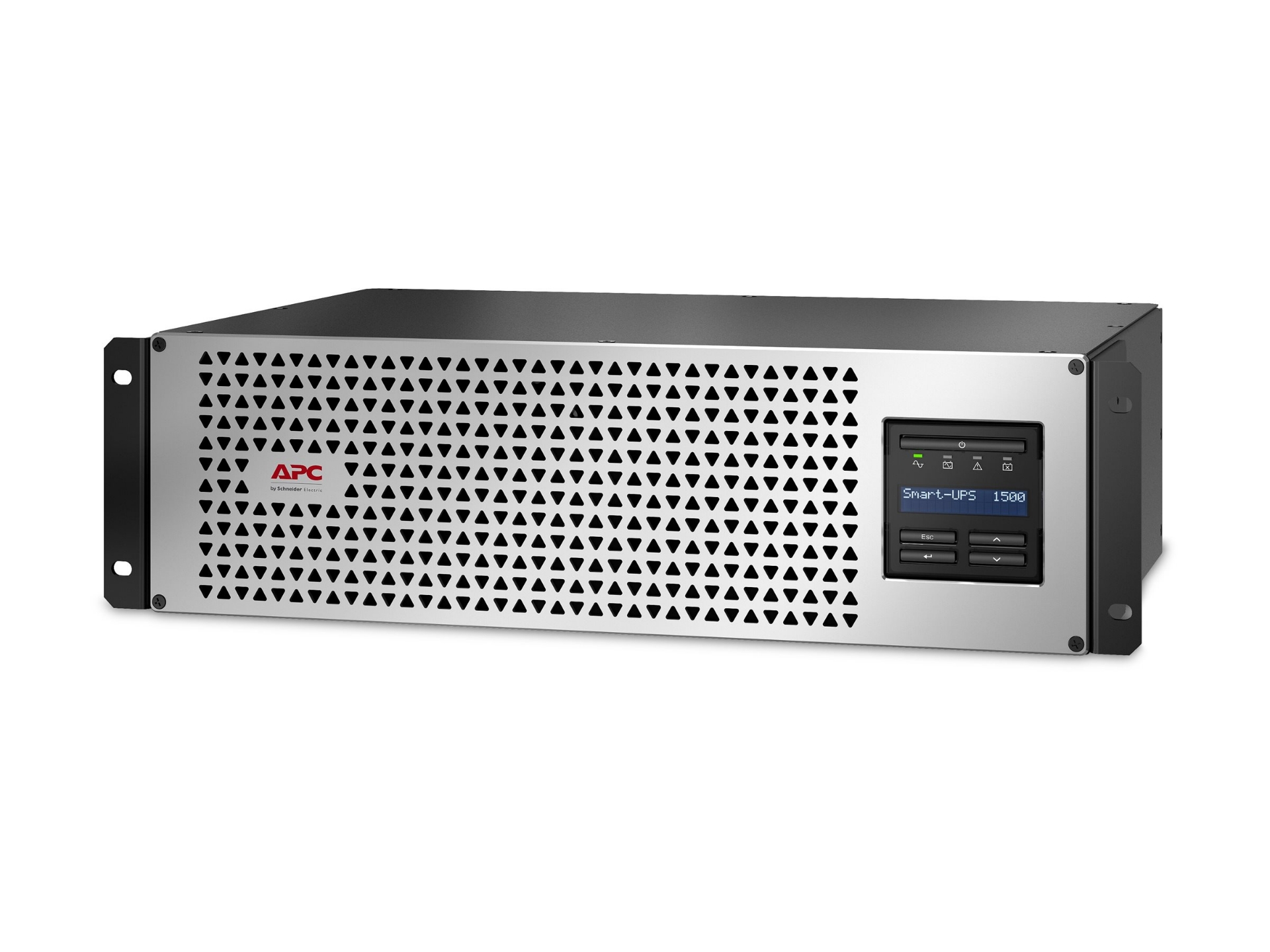

Produktbeskrivning
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Egenskaper
Cold-start capableProvides temporary battery power when the utility power is out.
Energy meterProvides actual kilowatt hours of usage for energy conscious users.
Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiencyReduces utlility costs, generates less heat.
Lithium-ion batteryLithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
Predictive replace battery dateDynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on batterySimulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet groupSingle outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlotCustomize UPS capabilities with management cards.
Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Teknisk specifikation
Allmänt
| Typ av enhet | UPS - rackmonterbar/extern |
|---|
| Höjd (U-format) | 3U |
|---|
Nätdel
| UPS-teknik | Interaktiv |
|---|
| Inspänning | AC 230 V |
|---|
| Inspänningens område | AC 160 - 286 V |
|---|
| Inspänningens område (justeringsbart) | AC 151 - 302 V |
|---|
| Tillhandahållen frekvens | 50/60 Hz ± 3Hz |
|---|
| Erforderlig frekvens | 50/60 Hz ± 3Hz |
|---|
| Inmatningsanslutningar | 1 x ström IEC 60320 C14 |
|---|
| Kontaktdetaljer för uteffekt | 6 x power IEC 60320 C13 |
|---|
| Utspänning | AC 230 V ± 5% - 50/60 Hz |
|---|
| Effektkapacitet | 1.35 kW / 1500 VA |
|---|
| Utvågform | Sinusvåg |
|---|
| Spänningsavledning | Ja |
|---|
| Energivärdering | 680 joule |
|---|
Batteri
| Teknik | Litiumjon |
|---|
| Laddningstid | 3 timmar |
|---|
Nätverk
| Gränssnitt för fjärradministration | RS-232, USB |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x hantering (RS-232) - RJ-45
1 x hantering (USB) |
|---|
| Expansionskortplatser | 1 (totalt)/ 1 (ledig) x SmartSlot |
|---|
Diverse
| Medföljande kablar | Seriell kabel - extern
USB-kabel - extern |
|---|
| Värde för utrustningsskydd | 150000 US-dollar |
|---|
| Egenskaper | Hörbart larm, LCD-bildskärm |
|---|
| Standarder som följs | CSA, GS, IEC 62040-1-1, IEC 62040-2, RoHS, REACH, IP20, EAC, IEC 62040-1-2, RCM, UL 1973 |
|---|
Programvara / Systemkrav
| Medföljande programvara | APC PowerChute Business Edition |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 0 - 95 % (icke-kondenserande) |
|---|
| Ljudnivå | 45 dB |
|---|
Mått och vikt
| Bredd | 43.8 cm |
|---|
| Djup | 30.2 cm |
|---|
| Höjd | 13.1 cm |
|---|
| Vikt | 19.5 kg |
|---|
Mått och vikt (brutto)
| Emballagets bredd | 58.4 cm |
|---|
| Emballagets djup | 44.8 cm |
|---|
| Emballagets höjd | 27.9 cm |
|---|
| Emballagets vikt | 22.68 kg |
|---|
Kompatibilitetsinformation
| Designat för | P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP |
|---|
