Produktbeskrivning

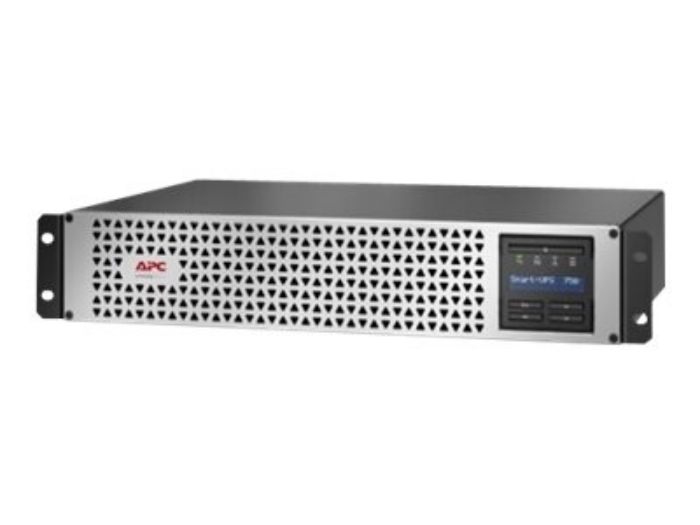

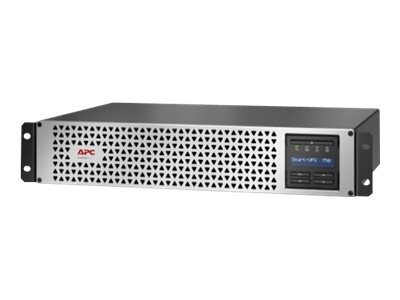

The Smart-UPS Lithium Ion UPS offers intelligent, efficient network power protection from entry-level to long-range equipment. It's ideal for servers, point-of-sale equipment, routers, switches, hubs and other network devices.



Egenskaper

Avoid costly power problems by keeping your hardware and data security up and running
Mains-level power treatment protects against power surges and disturbing noise. An automatic solid-state voltage regulator can increase a low input voltage by 30% and decrease a high voltage by 12%, without any battery operation. Reliable power supply from the backup battery during power failures or prolonged system shutdowns.

Energy-saving operating mode
An energy-saving operating mode achieves an efficiency level of over 97%. Intelligent battery management, pioneered by APC, optimizes battery performance and life through precise, intelligent temperature-compensated charging. A dynamic battery replacement date indicator and automatic self-tests guarantee battery reliability and warn when replacement is due. Convenient hot-swappable battery modules enable battery replacement without powering down.

Peace of mind thanks to total equipment reliability and compatibility
This UPS offers a pure sine wave output, recommended by server manufacturers using active power factor correction (PFC) power supplies. So you can deploy Smart-UPS with the assurance that it meets or exceeds stringent industry standards.

Optimized productivity with adaptability to your specific application needs
An intuitive interface provides clear information and allows inverter configuration to be carried out locally via easy-to-use navigation keys. More than 15 different programmable settings, including controlled outlet groups, enable application-specific settings, thresholds and notifications.

Expected battery replacement date
Smart-UPS Lithium Ion dynamically recalls the month and year in which the battery is due for replacement, to facilitate long-term maintenance planning.

Pure sine wave output on battery
The sine wave output simulates the mains supply to offer the highest degree of compatibility with sensitive electronic equipment and active servers equipped with power factor correction (PFC).

Compatibility with shallow racks
Its compact design is perfectly suited to shallow rack applications.

Single group of controlled outlets
A single output group can be controlled separately by the UPS for discrete restrike of suspended equipment and load shedding of non-critical and sequenced on/off loads.

Automatic voltage regulation by amplification and clipping
The UPS increases application availability by correcting voltage dips and surges without straining the battery.

Automatic self-test
Battery self-testing is carried out periodically to ensure early detection of the need for battery replacement.



Teknisk specifikation

Typ av enhet	UPS - rackmonterbar/extern
Höjd (U-format)	2U
Färg	Svart

UPS-teknik	Interaktiv
Inspänning	AC 230 V
Inspänningens område	AC 160 - 286 V
Inspänningens område (justeringsbart)	AC 151 - 302 V
Tillhandahållen frekvens	50/60 Hz ± 3Hz
Erforderlig frekvens	50/60 Hz ± 3Hz
Inmatningsanslutningar	Ström IEC 60320 C14
Kontaktdetaljer för uteffekt	6 x power IEC 60320 C13
Utspänning	AC 230 V ± 5% - 50/60 Hz
Effektkapacitet	600 Watt / 750 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	645 joule

Teknik	Litiumjon
Laddningstid	3 timmar

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x hantering (RS-232) - RJ-45 1 x hantering (USB)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Egenskaper	Hörbart larm, LCD-bildskärm
Standarder som följs	NOM, UL 1449, UL 1778, CSA C22.2 No. 107.1, RoHS, FCC Part 15 A, REACH, IP20

Medföljande programvara	APC PowerChute Business Edition

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	45 dB

Bredd	43.8 cm
Djup	31.8 cm
Höjd	8.6 cm
Vikt	17.69 kg

Emballagets bredd	58.4 cm
Emballagets djup	47.2 cm
Emballagets höjd	22.9 cm
Emballagets vikt	18.6 kg

Designat för	P/N: ACCS1001, ACDC1015, ACDC1019, AP5607, AP9290, AR106V, AR204A, AR3150SP2, AR3300W, AR3350W, AR3357X610, AR3357X617, AR4018A, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432
