Produktbeskrivning

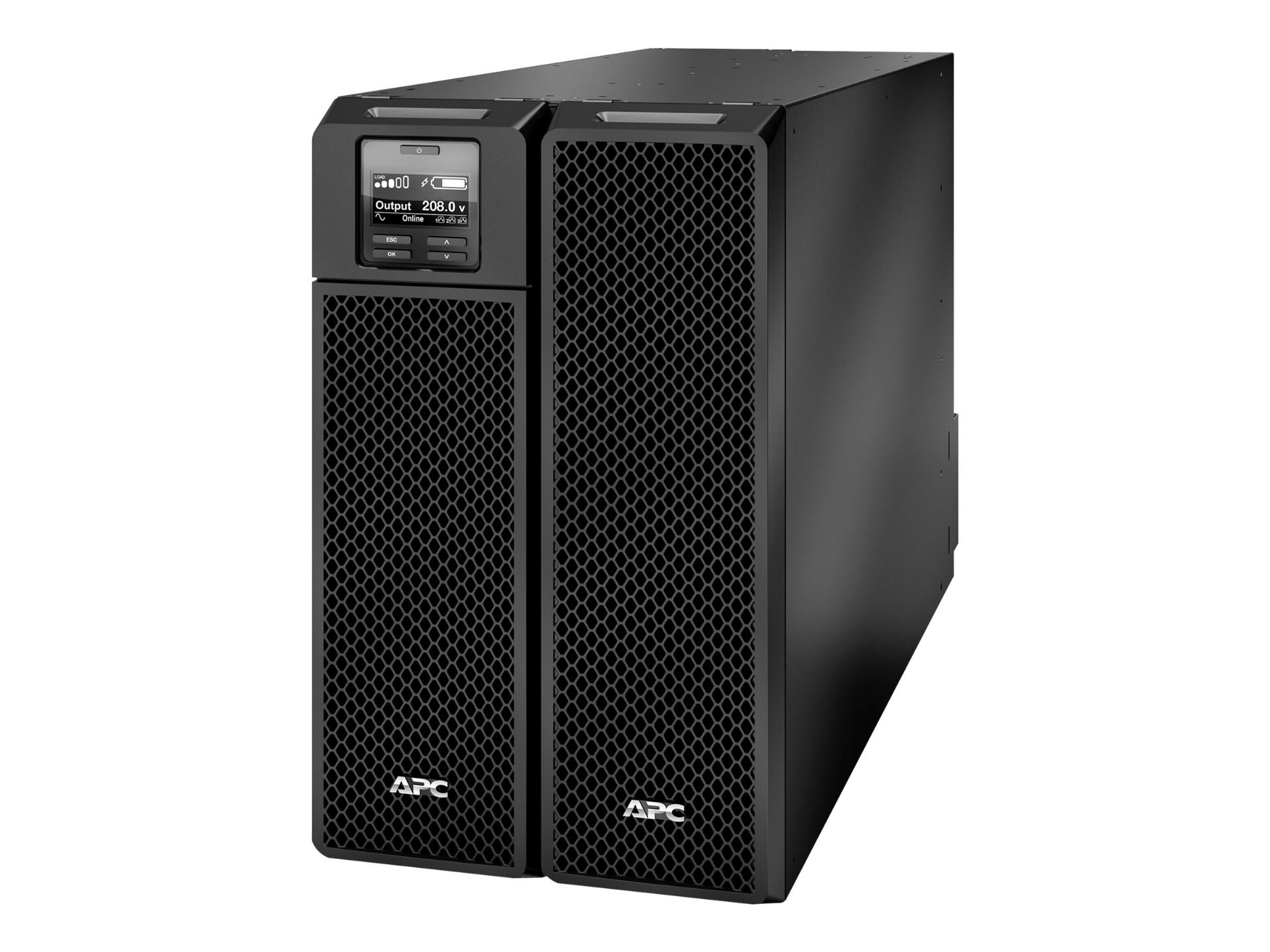

Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice / data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting high loads. The device features unity output power factor enabling it to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. The UPS includes an integrated network management card for remote management. The Smart-UPS On-Line provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.



Egenskaper

High-efficiency "Green Mode"
Achieves high efficiency, which saves utility and cooling costs without compromising performance or reliability.

Graphical LCD display with backlight
Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.

Built-in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery.



Teknisk specifikation

Typ av enhet	UPS - extern
Färg	Svart

UPS-teknik	Online
Inspänning	AC 208 V
Inspänningens område	AC 160 - 275 V
Inspänningens område (justeringsbart)	AC 100 - 275 V
Tillhandahållen frekvens	50/60 Hz ± 3Hz
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	3-trådig kabel (1PH + N + G)
Kontaktdetaljer för uteffekt	1 x 3-trådig kabel (1PH + N + G) 4 x ström, NEMA L6-20 2 x ström, NEMA L6-30
Utspänning	AC 208 V ± 2% - 50/60 Hz
Effektkapacitet	10 kW / 10000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	480 joule
Effektivitet	98%

Teknik	Bly-syra
Laddningstid	1.5 timmar
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	Ethernet 10/100, RS-232, USB

Gränssnitt	1 x hantering (Ethernet) - RJ-45 1 x hantering (USB) - 4-stifts USB typ B 1 x EPO (emergency power off) 1 x seriell - RJ-45
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Egenskaper	Hörbart larm, LCD-bildskärm
Standarder som följs	NOM, UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20

ENERGY STAR	Ja

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	55 dBA

Bredd	26.3 cm
Djup	71.5 cm
Höjd	43.2 cm
Vikt	111.58 kg

Emballagets bredd	60 cm
Emballagets djup	1 m
Emballagets höjd	46.1 cm
Emballagets vikt	126.55 kg

Designat för	P/N: SRT5KRMTF, SRT5KTF
