Produktbeskrivning

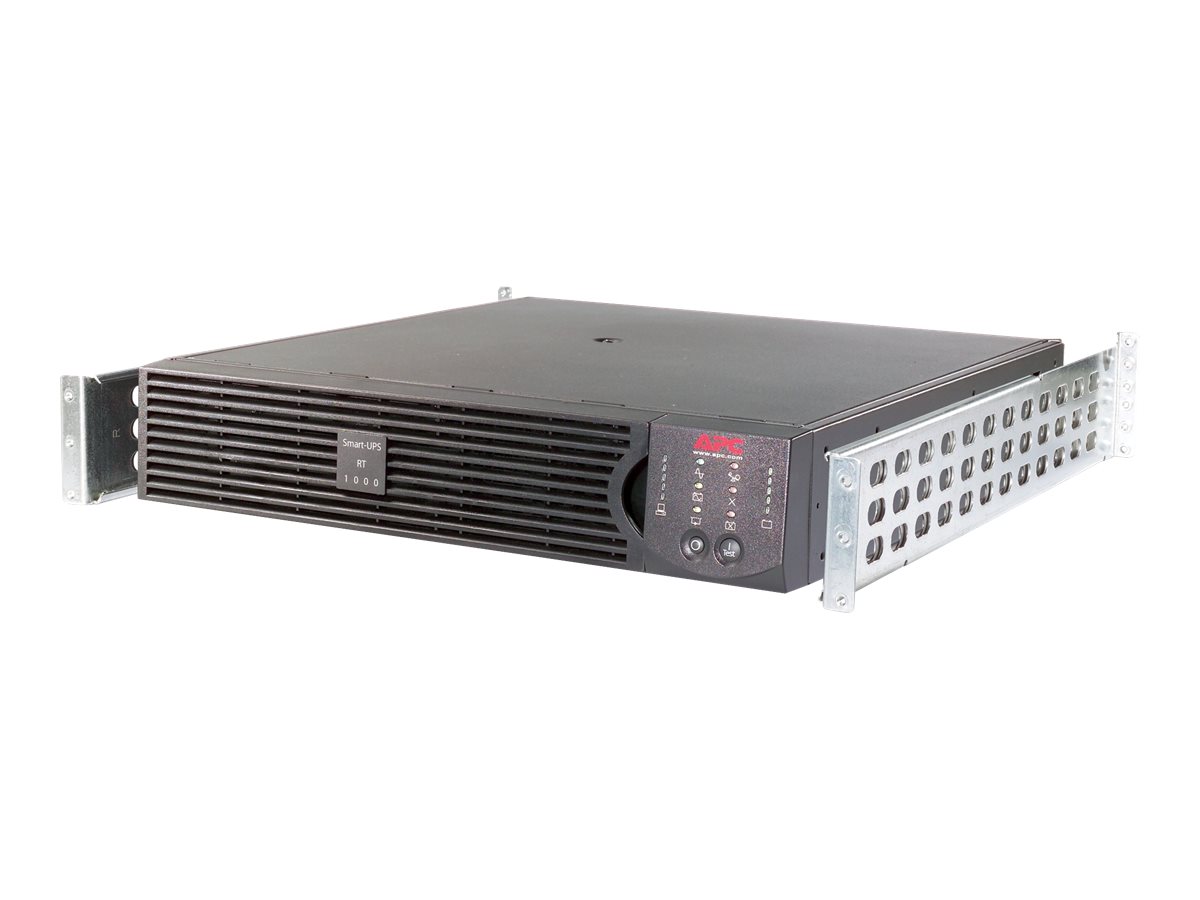

Smart-UPS RT is a family of high performance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but feature double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.



Egenskaper

● Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
● LED indicators - provide easy-to-read status of the unit and utility power conditions
● Serial connectivity - provides management of the UPS via a serial port
● SmartSlot - customize UPS capabilities with management cards
● Easy to install - innovative design allows for fast, easy installation by almost anybody
● Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Teknisk specifikation

Typ av enhet	UPS - extern
Batterityp	Intern
Höjd (U-format)	2U
Färg	Svart

Inspänning	AC 220/230/240 V
Inspänningens område	AC 180 - 280 V
Inspänningens område (justeringsbart)	AC 100 - 280 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	6 x power IEC 60320 C13
Utspänning	AC 220/230/240 V ± 3% - 50/60 Hz
Effektkapacitet	700 Watt / 1000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	420 joule

Antal	1
Teknik	Bly-syra
Runtime (upp till)	14 min vid full laddning
Laddningstid	3 timmar

Gränssnitt för fjärradministration	RS-232

Gränssnitt	1 x hantering (RS-232) - 9 pin D-Sub (DB-9)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	Seriell kabel - extern
Egenskaper	Inbyggd förbikopplare
Standarder som följs	EN 60950, EN 61000-3-2, UL 1449, EN55022 klass A, EN 50091-2, RoHS Exemption 7b, RoHS, EN 50091-1, REACH

Medföljande programvara	Drivrutiner och hjälpprogram

Service och support	Begränsad garanti - material och tillverkning - 2 år Begränsad garanti - utbyte - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	55 dBA

Bredd	8.5 cm
Djup	48.3 cm
Höjd	43.2 cm
Vikt	23 kg

Emballagets bredd	63 cm
Emballagets djup	59.4 cm
Emballagets höjd	28.6 cm
Emballagets vikt	27.8 kg
