Produktbeskrivning

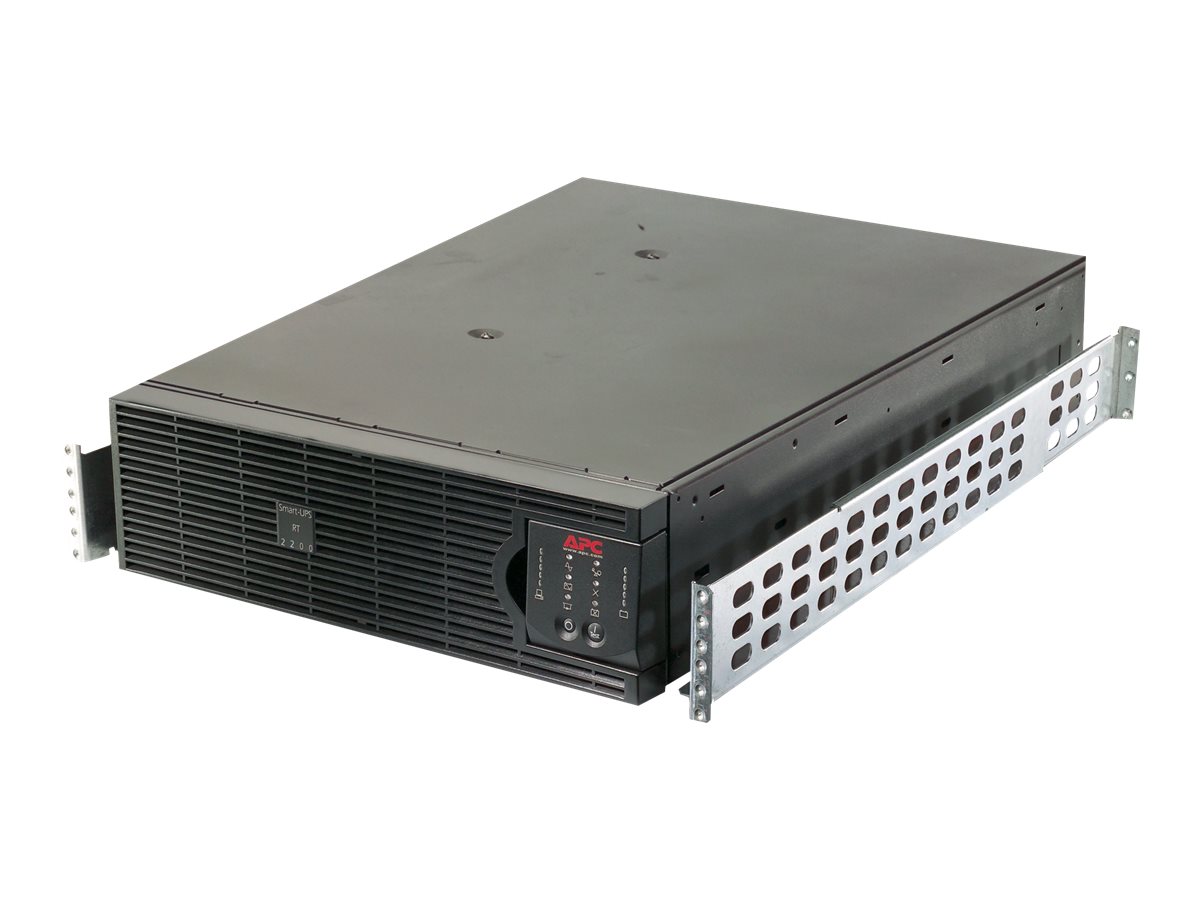

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Using APC Smart-UPS RT, users can support power hungry blade servers or heavily loaded equipment racks. The flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.



Egenskaper

Remote UPS management
Enable management of your UPS by connecting it directly to the network.

Advanced electrical features
Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency.

Intuitive monitoring
Step by step navigation and menu screens for critical system information and data. Information is easy to access and presented in a very intuitive way.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Wide input voltage range
Designed for harsh electrical environments to save battery life.

Sine wave output
Eliminates humming and heat generated when powering tubelights and fans.

Intelligent battery charging
Microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life.

Excellent footprint
Small UPS footprint provides maximum usage of valuable electrical room floorspace.

High online efficiency
Reduces utility costs, generates less heat.

LED indicators
Provide easy-to-read status of the unit and utility power conditions.

Overload protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Audible alarms
Provides notification of changing utility power and UPS conditions.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Serial connectivity
Provides management of the UPS via a serial port.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime
Allows additional run time to be quickly added as needed.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Programmable frequency
Ensures compatibility with different input frequencies.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Network manageable
Provides remote management of the UPS over the network.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Predicative failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.



Teknisk specifikation

Typ av enhet	UPS - extern
Batterityp	Insticksmodul
Höjd (U-format)	3U
Färg	Svart

UPS-teknik	Online
Inspänning	AC 220/230/240 V
Inspänningens område	AC 180 - 280 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Kontaktdetaljer för uteffekt	8 x power IEC 60320 C13 2 x ström IEC 60320 C19
Utspänning	AC 220/230/240 V ± 3% - 50/60 Hz
Effektkapacitet	1.54 kW / 2200 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	480 joule

Antal	2
Teknik	Bly-syra
Runtime (upp till)	21 min vid full laddning 48 min vid halv maskin
Laddningstid	2.5 timmar

Gränssnitt för fjärradministration	RS-232

Gränssnitt	1 x hantering (RS-232) - RJ-45 1 x EPO (emergency power off)
Expansionskortplatser	1 SmartSlot

Medföljande kablar	Seriell kabel - extern
Rackmonteringssats	Inkluderat
Egenskaper	Hörbart larm, nödavstängning, intern förbikoppling, LED-indikatorer
Standarder som följs	EN 60950, EN 61000-3-2, UL 1449, EN55022 klass A, EN 50091-2, RoHS, EN 50091-1, REACH

Medföljande programvara	Drivrutiner och hjälpprogram

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	55 dBA

Bredd	13 cm
Djup	66 cm
Höjd	43.2 cm
Vikt	54.6 kg

Emballagets bredd	60.3 cm
Emballagets djup	98 cm
Emballagets höjd	34.7 cm
Emballagets vikt	63.6 kg
