Produktbeskrivning

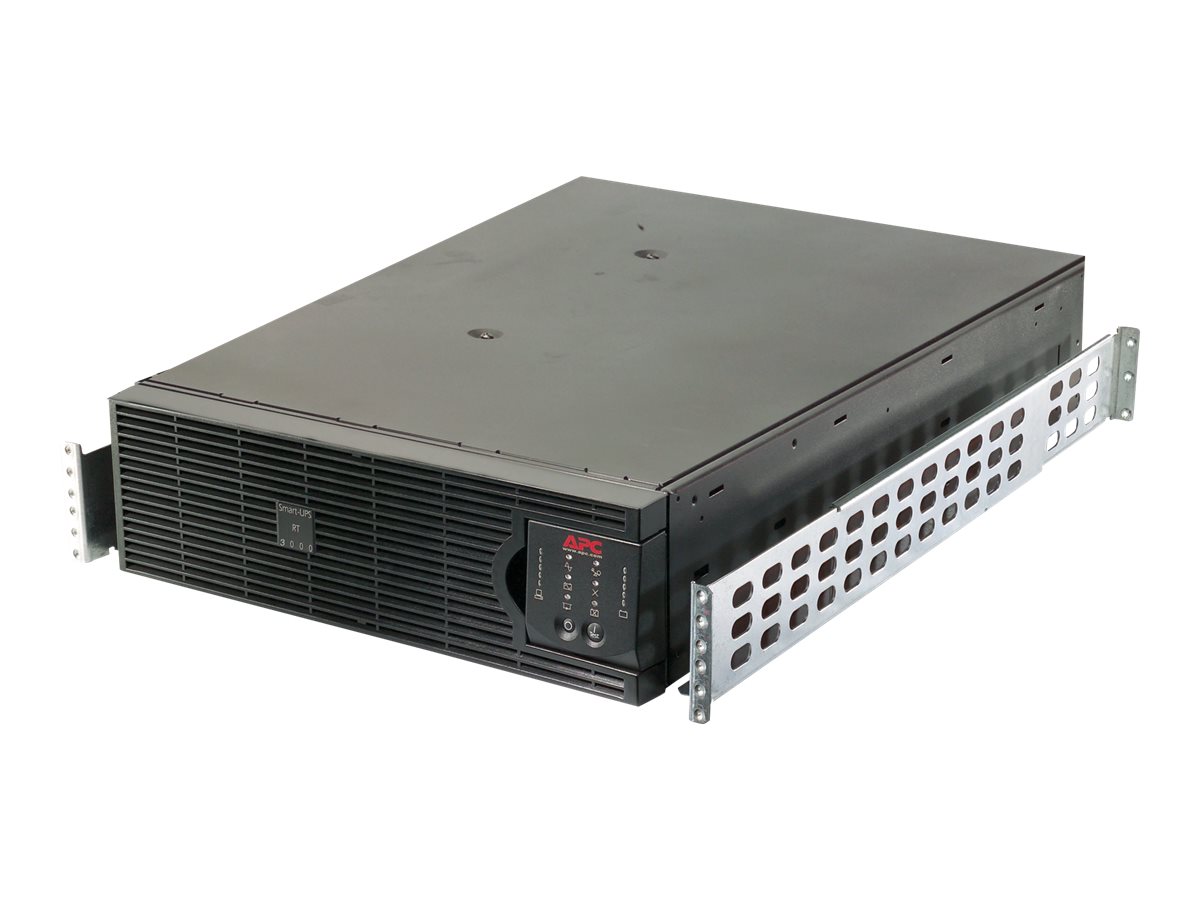

The APC Smart-UPS RT is a high-performance, uninterruptible power supply (UPS) that provides protection for electronic equipment from utility power blackouts, brownouts, sags and surges. The UPS filters small utility line fluctuations and isolates electronic equipment from large disturbances by internally disconnecting from utility line power. The UPS provides continuous power from the internal battery until utility power returns to safe levels or the battery is fully discharged.
Egenskaper
● Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
● Intelligent battery management -maximizes battery performance, life, and reliability through intelligent, precision charging
● LED indicators - provide easy-to-read status of the unit and utility power conditions
● Serial connectivity - provides management of the UPS via a serial port
● SmartSlot - customize UPS capabilities with management cards
● Easy to install - innovative design allows for fast, easy installation by almost anybody
● Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced
● User-replaceable batteries - increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Teknisk specifikation
Allmänt
| Typ av enhet | UPS - extern |
|---|
| Batterityp | Intern |
|---|
| Höjd (U-format) | 3U |
|---|
| Färg | Svart |
|---|
Nätdel
| UPS-teknik | Online |
|---|
| Inspänning | AC 220/230/240 V |
|---|
| Inspänningens område | AC 180 - 270 V |
|---|
| Inspänningens område (justeringsbart) | AC 100 - 280 V |
|---|
| Tillhandahållen frekvens | 50/60 Hz |
|---|
| Erforderlig frekvens | 50/60 Hz |
|---|
| Inmatningsanslutningar | 1 x ström |
|---|
| Kontaktdetaljer för uteffekt | 8 x power IEC 60320 C13
2 x ström IEC 60320 C19 |
|---|
| Utspänning | AC 220/230/240 V ± 3% - 50/60 Hz |
|---|
| Effektkapacitet | 2.1 kW / 3000 VA |
|---|
| Utvågform | Sinusvåg |
|---|
| Spänningsavledning | Ja |
|---|
| Energivärdering | 480 joule |
|---|
Batteri
| Antal | 1 |
|---|
| Teknik | Bly-syra |
|---|
| Runtime (upp till) | 14.1 min vid full laddning |
|---|
| Laddningstid | 2.5 timmar |
|---|
Nätverk
| Gränssnitt för fjärradministration | RS-232 |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x hantering (RS-232) - RJ-45 |
|---|
| Expansionskortplatser | 1 (totalt)/ 1 (ledig) x SmartSlot |
|---|
Diverse
| Medföljande kablar | Strömkabel 2.4 m
Seriell kabel - extern |
|---|
| Egenskaper | Intern förbikoppling, LED-indikatorer |
|---|
| Standarder som följs | EN 60950, EN 61000-3-2, UL 1449, EN55022 klass A, EN 50091-2, RoHS Exemption 7b, EN 50091-1, REACH |
|---|
Programvara / Systemkrav
| Medföljande programvara | Drivrutiner och hjälpprogram |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - material och tillverkning - 2 år
Begränsad garanti - utbyte - 2 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 55 °C |
|---|
| Luftfuktighet vid drift | 0 - 95% |
|---|
| Ljudnivå | 55 dBA |
|---|
Mått och vikt
| Bredd | 13 cm |
|---|
| Djup | 66 cm |
|---|
| Höjd | 43.2 cm |
|---|
| Vikt | 54.6 kg |
|---|
Mått och vikt (brutto)
| Emballagets bredd | 60.3 cm |
|---|
| Emballagets djup | 98 cm |
|---|
| Emballagets höjd | 34.7 cm |
|---|
| Emballagets vikt | 63.6 kg |
|---|
