Produktbeskrivning

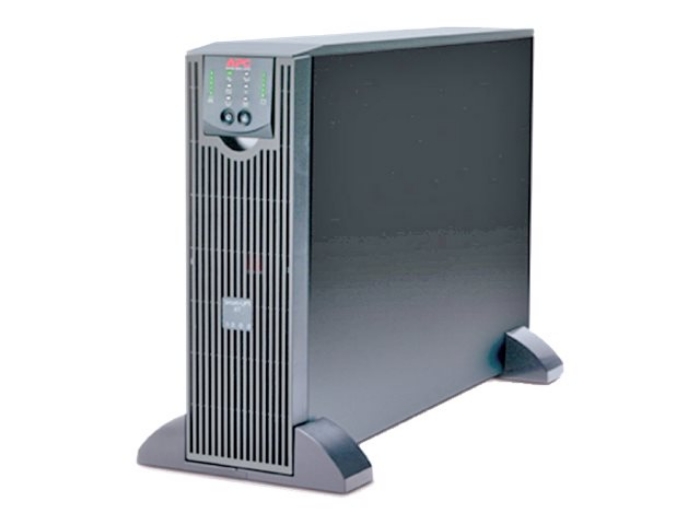

Smart-UPS RT is a family of high performance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but feature double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.



Teknisk specifikation

Typ av enhet	UPS - Effektfaktorkorrigering (PFC) - extern
Batterityp	Insticksmodul
Höjd (U-format)	3U
Färg	Svart

UPS-teknik	Online
Inspänning	AC 120 V
Inspänningens område	AC 90 - 150 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström, NEMA L5-30
Kontaktdetaljer för uteffekt	6 x ström, NEMA 5-15 2 x ström, NEMA 5-20
Utspänning	AC 120 V 50/60 Hz
Effektkapacitet	2.1 kW / 3000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Tidsfördröjning för spänningsavledare	0 ns
Energivärdering	480 joule

Teknik	Bly-syra
Runtime (upp till)	14.1 min vid full laddning

Gränssnitt	1 x hantering (RS-232) - 25 pin D-Sub (DB-25)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	Strömkabel 3 m Seriell kabel - extern
Rackmonteringssats	Tillval
Egenskaper	Nödavstängning, Hörbart larm
Standarder som följs	FCC klass A-certifierad, CSA, UL 1778

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%

Bredd	43.2 cm
Djup	66 cm
Höjd	13 cm
Vikt	54.6 kg
