Produktbeskrivning

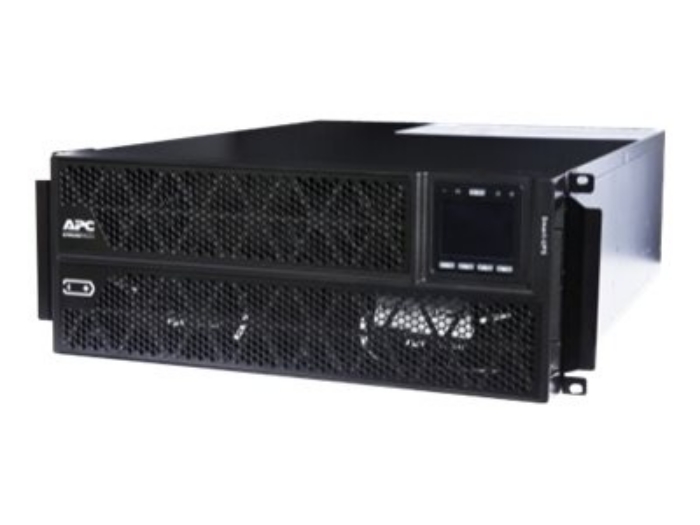

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
Egenskaper
● Automatic internal bypass - supplies utility power to the connected loads in the event of a UPS power overload or fault
● Scalable runtime - allows additional run time to be quickly added as needed
● Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
● Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced
● Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
● Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
● Network manageable - provides remote power management of the UPS over the network
● InfraStruXure manager compatible - enables centralized management via the APC InfraStruXure manager
● LED status indicators - quickly understand unit and power status with visual indicators
● Serial connectivity - provides management of the UPS via a serial port
● Plug-and-Play external batteries - ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS
● Rack/tower convertible - protects the initial investment in the UPS when migrating from tower to rack-mount environment
● Flash upgradeable firmware - install maintenance releases of firmware remotely using FTP
● User-replaceable batteries - increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
● Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
● Predicitive failure notification - provides early-warning fault analysis ensuring proactive component replacement
● Disconnected battery notification - warns when a battery is not available to provide backup power
● Audible alarms - provides notification of changing utility power and UPS power conditions
● Frequency and voltage regulation - gives higher application availability by correcting poor frequency and voltage conditions without using the battery
● Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
● Input power factor correction - minimizes installation costs by enabling the use of smaller generators and cabling
● Generator compatible - ensures clean, uninterrupted power to protected equipment when generator power is used
● Cold-start capable - provides temporary battery power when the utility power is out
● Resettable circuit breaker - easy recovery from overloads; no need to replace a fuse
● Safety-agency approved - ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
Teknisk specifikation
Allmänt
| Typ av enhet | UPS - rackmonterbar/extern |
|---|
| Höjd (U-format) | 4U |
|---|
Nätdel
| UPS-teknik | Online |
|---|
| Inspänning | AC 230 V |
|---|
| Inspänningens område | AC 160 - 285 V |
|---|
| Tillhandahållen frekvens | 50/60 Hz ± 3Hz |
|---|
| Erforderlig frekvens | 40 - 70 Hz |
|---|
| Inmatningsanslutningar | 1 x 3-trådig kabel (1PH + N + G) |
|---|
| Kontaktdetaljer för uteffekt | 1 x ström IEC 60320 C19
2 x power IEC 60320 C13
1 x fast 3-trådig (HN + G)
4 x IEC-jumper |
|---|
| Utspänning | AC 230 V ± 2% - 50/60 Hz |
|---|
| Effektkapacitet | 6 kW / 6000 VA |
|---|
| Utvågform | Sinusvåg |
|---|
| Energivärdering | 600 joule |
|---|
Batteri
| Antal | 2 |
|---|
| Teknik | Bly-syra |
|---|
| Runtime (upp till) | 1 min vid full laddning |
|---|
| Laddningstid | 4 timme/timmar |
|---|
| Egenskaper | Förseglad |
|---|
Nätverk
| Gränssnitt för fjärradministration | RS-232, USB |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x hantering (RS-232) - RJ-45
1 x USB
1 x EPO (emergency power off) |
|---|
| Expansionskortplatser | 1 SmartSlot |
|---|
Diverse
| Medföljande kablar | Seriell kabel - extern |
|---|
| Egenskaper | Hörbart larm, LCD-bildskärm, intern förbikoppling, automatiskt självtest, Eco-Mode, automatisk omstart, varning vid batterifel |
|---|
| Standarder som följs | RoHS, REACH, IP20, IEC 62040-1, EN 62040-1 |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 3 år
Begränsad garanti - batterier - 2 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 0 - 95 % (icke-kondenserande) |
|---|
| Ljudnivå | 55 dBA |
|---|
Mått och vikt
| Bredd | 44 cm |
|---|
| Djup | 62 cm |
|---|
| Höjd | 17.78 cm |
|---|
| Vikt | 51.9 kg |
|---|
Mått och vikt (brutto)
| Emballagets bredd | 59 cm |
|---|
| Emballagets djup | 79 cm |
|---|
| Emballagets höjd | 27.5 cm |
|---|
| Emballagets vikt | 59 kg |
|---|
