Produktbeskrivning

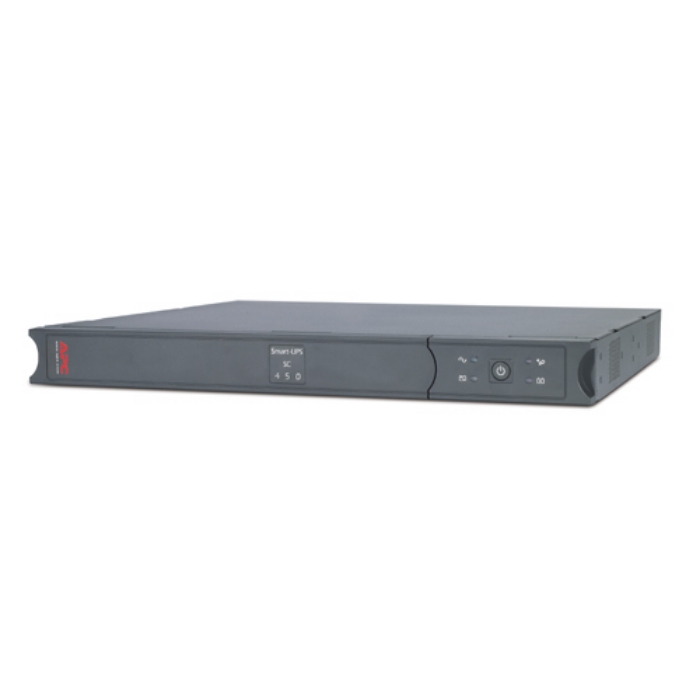

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.



Viktiga egenskaper

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower. UPS topology: Line-Interactive, Output power capacity: 0.45 kVA, Output power: 280 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 108 VAh, Typical backup time at full load: 5.9 min. Form factor: Rackmount/Tower, Product colour: Grey, Rack capacity: 1U. Compliance certificates: RoHS, Certification: C-tick, CE, GOST, VDE, PEP, EOLI



Teknisk specifikation

UPS topology	Line-Interactive
Output power capacity	0.45 kVA
Output power	280 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	320 J
Hold time (max)	8 ms
Hold time (min)	4 ms
Noise level	38 dB
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL),Fax,Modem,Network
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm,Overload alarm
Auto-restart	Yes

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
Serial interface	Yes
Serial interface type	RS-232
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	0
SmartSlot	No
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	108 VAh
Typical backup time at full load	5.9 min
Typical backup time at half load	19.4 min
Battery life (max)	5 year(s)
Battery recharge time	5 h
Hot-swap battery	Yes
Automatic battery test	Yes

Form factor	Rackmount/Tower
Product colour	Grey
Rack capacity	1U
LED indicators	Battery replacement
Certification	C-tick, CE, GOST, VDE, PEP, EOLI

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Compliance certificates	RoHS
Total carbon footprint (kg of CO2e)	484.92

Width	432 mm
Depth	383 mm
Height	44 mm
Weight	10180 g
Package width	476 mm
Package depth	589 mm
Package height	164 mm
Package weight	11730 g

Rack mount kit	Yes
Management card included	No
Cables included	RS-232
Manual	Yes
Software CD	Yes

Products per pallet	24 pc(s)
Harmonized System (HS) code	85078000

Nominal output voltage	230 V
