Produktbeskrivning

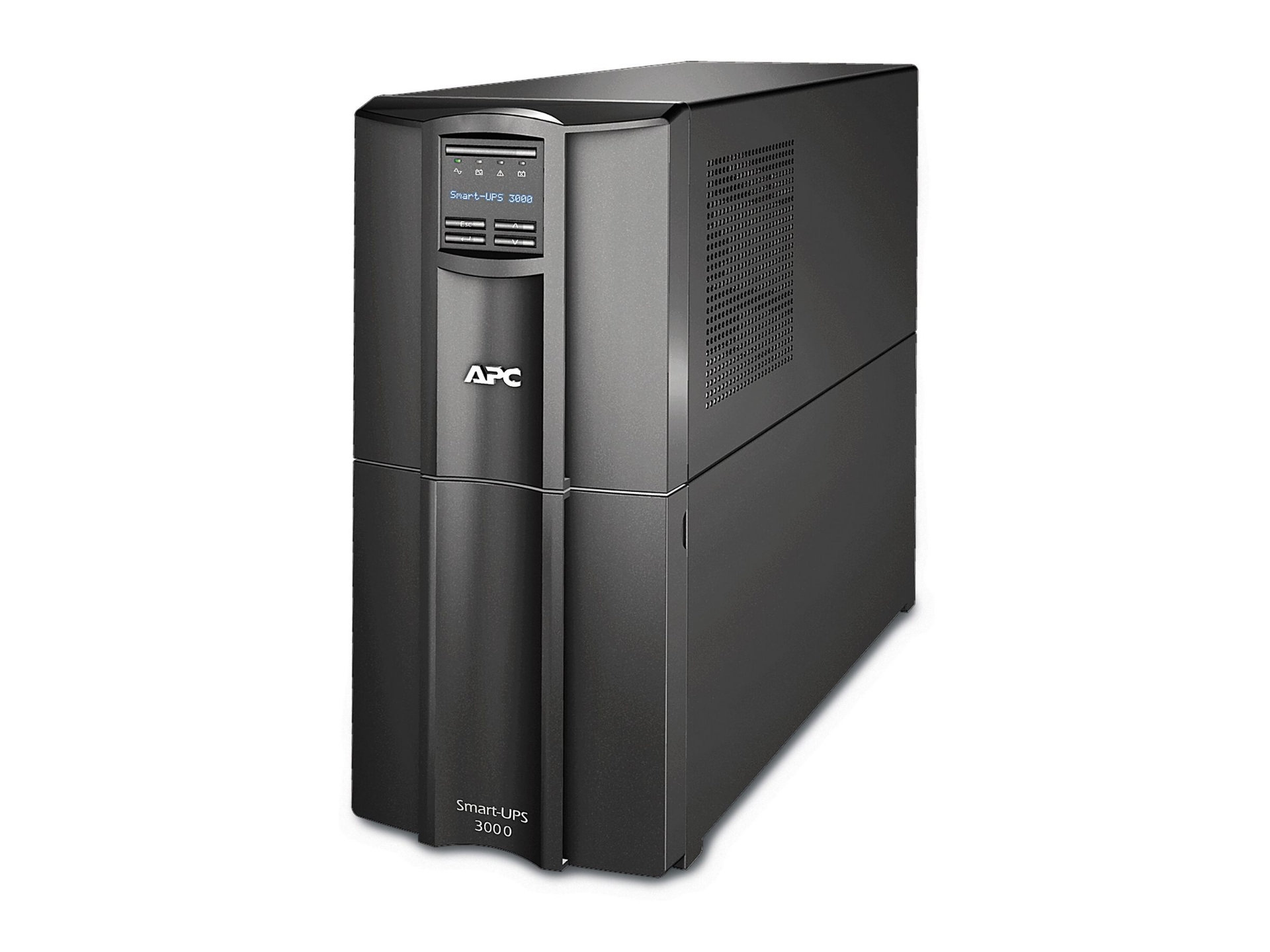

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.



Egenskaper

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Audible alarms
Provides notification of changing utility power and UPS power conditions.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Boost and Trim Automatic Voltage Regulation (AVR)
Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.

Cold-start capable
Provides temporary battery power when the utility power is out.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency
Reduces utlility costs, generates less heat.

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot
Customize UPS capabilities with management cards.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.



Teknisk specifikation

Typ av enhet	UPS - extern
Färg	Svart
Kombinerad med	APC SmartConnect

UPS-teknik	Interaktiv
Inspänning	AC 220/230/240 V
Inspänningens område	AC 160 - 286 V
Inspänningens område (justeringsbart)	AC 151 - 302 V
Tillhandahållen frekvens	50/60 Hz ± 3Hz
Erforderlig frekvens	50/60 Hz ± 3Hz
Inmatningsanslutningar	1 x ström IEC 60320 C20
Kontaktdetaljer för uteffekt	8 x power IEC 60320 C13 2 x IEC-jumper 1 x ström IEC 60320 C19
Utspänning	AC 220/230/240 V ± 5% - 50/60 Hz
Effektkapacitet	2700 Watt / 3000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	365 joule
Kretsskydd	Strömbrytare

Antal	1
Teknik	Bly-syra
Runtime (upp till)	5.1 min vid full laddning 17.2 min vid halv maskin
Laddningstid	3 timmar
Transfertid	6 ms
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x hantering (RS-232) 1 x USB 1 x EPO (emergency power off)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	Seriell kabel - extern USB-kabel - extern
Egenskaper	Hörbart larm, nödavstängning, LCD-bildskärm, Automatisk spänningsreglering (AVR), kallstartfunktion, automatiskt självtest, prediktiv felnotifiering, hotswap-batterier, energimätare
Standarder som följs	CSA, UL 1778, VDE, IEC 62040-2, RoHS, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Medföljande programvara	APC PowerChute Business Edition

Service och support	Begränsad garanti - ersättningsprodukt eller reparation - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	45 dBA

Bredd	19.7 cm
Djup	54.4 cm
Höjd	43.5 cm
Vikt	52.5 kg

Emballagets bredd	38.1 cm
Emballagets djup	76.2 cm
Emballagets höjd	69.9 cm
Emballagets vikt	63.7 kg
