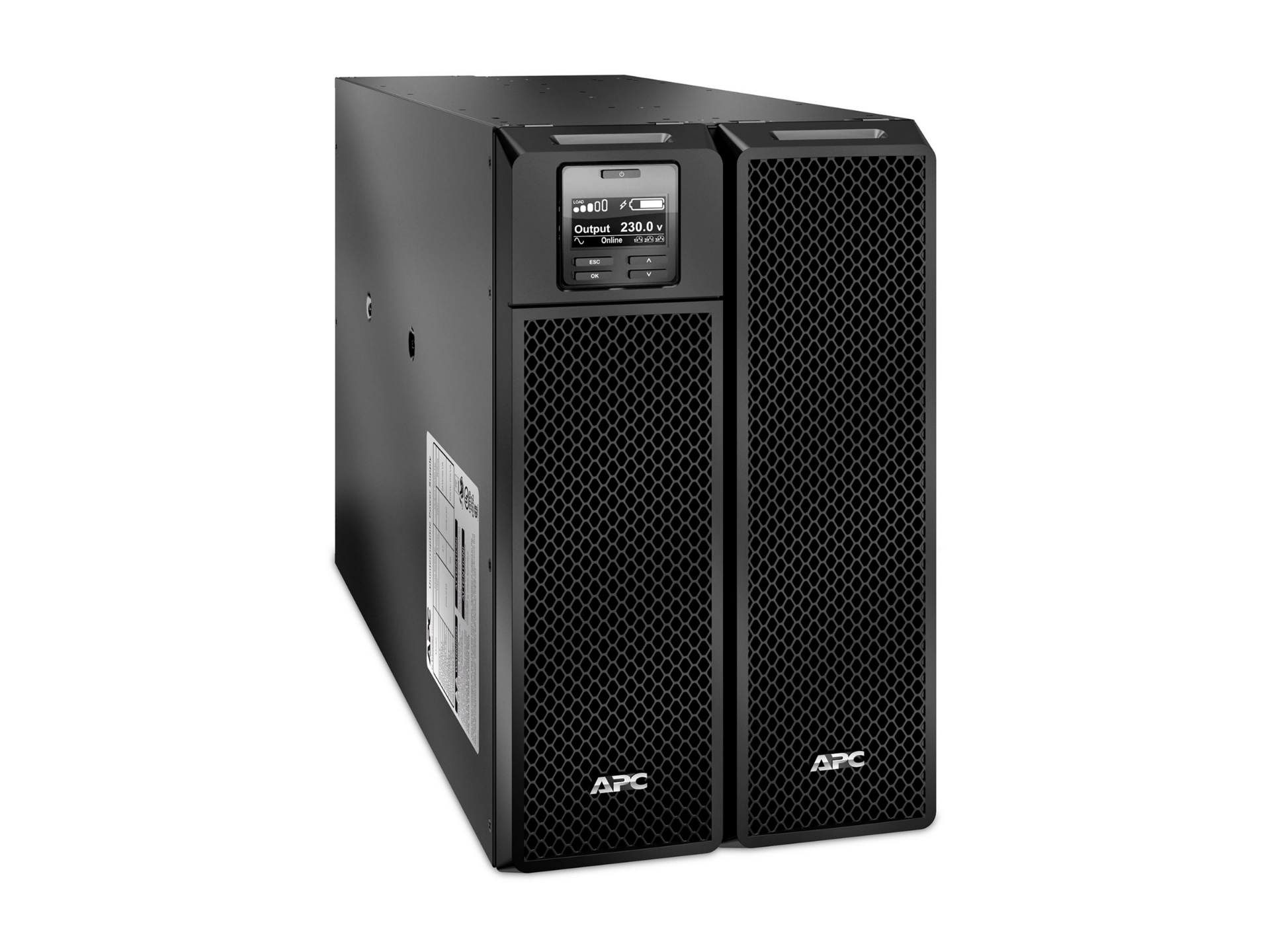

Produktbeskrivning

Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault.

Scalable runtime allows additional run time to be quickly added as needed.

Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced.



Egenskaper

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Scalable runtime
Allows additional run time to be quickly added as needed.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial connectivity
Provides management of the UPS via a serial port.

Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.



Teknisk specifikation

Typ av enhet	UPS - kan monteras i rack
Höjd (U-format)	6U
Färg	Svart

UPS-teknik	Online
Inspänning	AC 220/230/240/380/400/415 V
Inspänningens område	AC 160 - 275 V
Inspänningens område (justeringsbart)	Växelström 100 - 275 V/173 - 476 V
Tillhandahållen frekvens	50/60 Hz ± 3Hz
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	Fast 5-trådig (3PH + N + G), 3-trådig kabel (1PH + N + G)
Kontaktdetaljer för uteffekt	Fast 3-trådig (HN + G)
Utspänning	AC 220/230/240 V ± 2% - 50/60 Hz
Effektkapacitet	10 kW / 10000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	480 joule
Effektivitet	94.6% at 100 Load, 95.1% at 50% Load, 94% at 25% Load, 95% at 75% Load

Antal	2
Teknik	Bly-syra
Runtime (upp till)	3.8 min vid full laddning 11.5 min vid halv maskin
Laddningstid	1.5 timmar
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	Ethernet 10/100, RS-232, USB
Protokoll för administration på distans	SNMP

Gränssnitt	Hantering (RS-232) - RJ-45 1 x EPO (emergency power off) 1 x hantering (USB) Management (Fast Ethernet) - RJ-45
Expansionskortplatser	1 (ledig) x SmartSlot

Inkluderade tillbehör	Temperatursond
Medföljande kablar	USB-kabel - extern
Rackmonteringssats	Inkluderat
Egenskaper	Hörbart larm, LCD-bildskärm, intern förbikoppling, LED-indikatorer, kallstartfunktion, automatiskt självtest, hotswap-batterier, automatisk omstart
Standarder som följs	VDE, IEC 62040-2, IRAM, RoHS, REACH, EN 62040-2, IP20, EAC, RCM, IEC 62040-1, EN 62040-1

Medföljande programvara	Drivrutiner och hjälpprogram

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	55 dBA

Bredd	43.2 cm
Djup	71.5 cm
Höjd	26.3 cm
Vikt	111.82 kg

Emballagets bredd	60 cm
Emballagets djup	100 cm
Emballagets höjd	46.1 cm
Emballagets vikt	130 kg

Designat för

P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF002, AP5017, AP5606, AP5607, AP5616, AP92200, AP9290, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR7050, NBWL0356A
