Produktbeskrivning

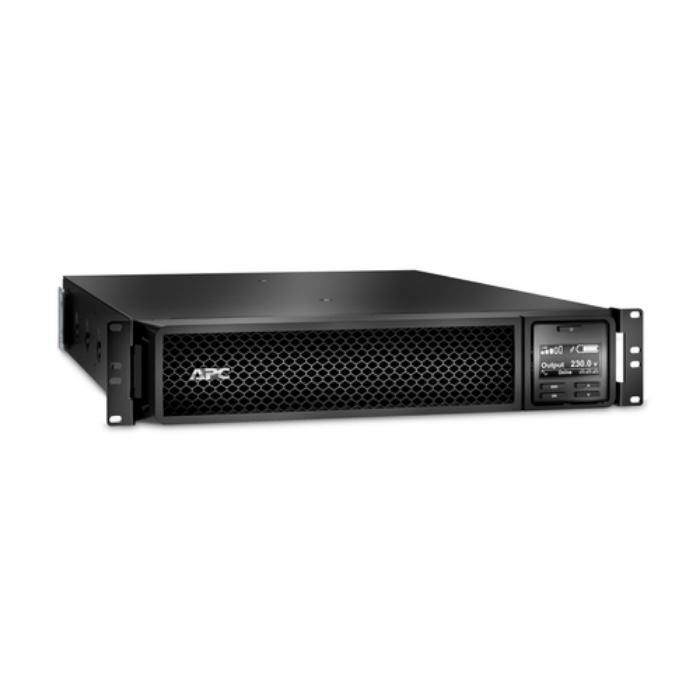

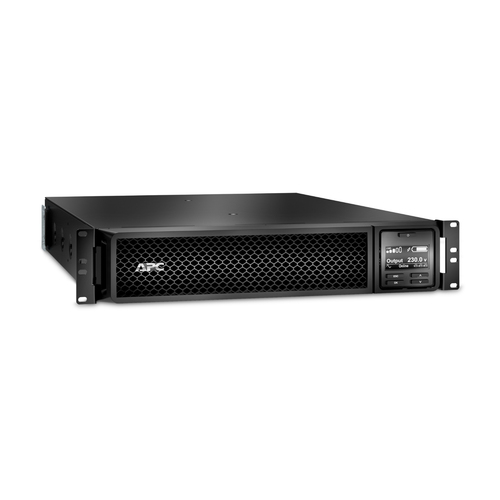

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.



Viktiga egenskaper

APC Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s), Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: RoHS, Certification: CE, EAC



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Output power	1000 W
Waveform	Sine
Input operation voltage (min)	50 V
Input operation voltage (max)	150 V
Input frequency	40/70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Surge energy rating	432 J
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Noise level	50 dB
Audible alarm(s)	Yes

AC outlet types	C13 coupler
AC outlets quantity	6 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
SmartConnect port	No

Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Yes

Form factor	Rackmount/Tower
Product colour	Black
Cable length	1.5 m
LED indicators	Status
International Protection (IP) code	IP20
Certification	CE, EAC

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %

Sustainability certificates	Green Premium
Compliance certificates	RoHS
Total carbon footprint (kg of CO2e)	1843.14

Width	432 mm
Depth	505 mm
Height	85 mm
Weight	21000 g
Package width	594 mm
Package depth	749 mm
Package height	246 mm
Package weight	29600 g

Management card included	No

Products per pallet	12 pc(s)
Harmonized System (HS) code	85078000
