Produktbeskrivning

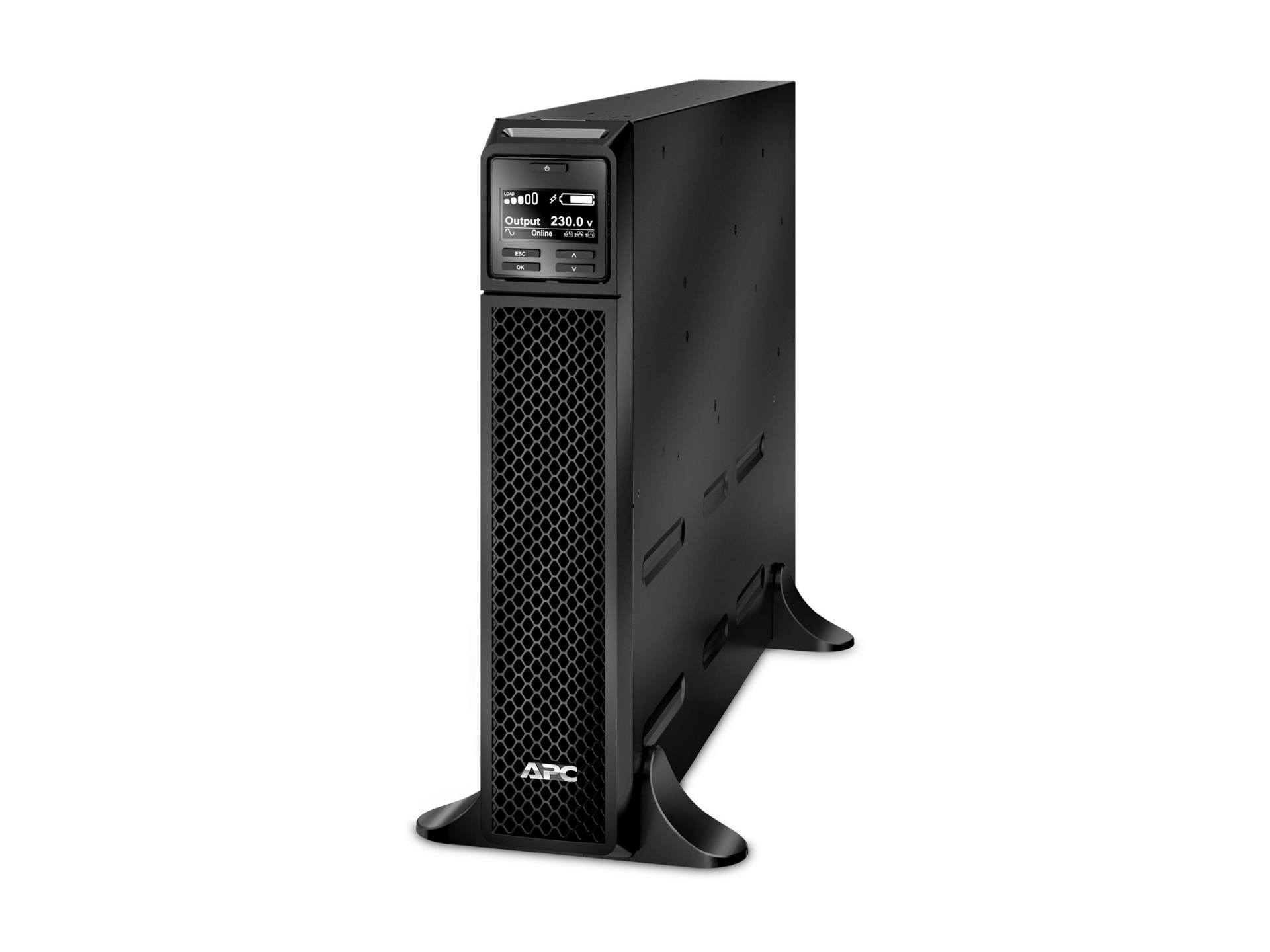

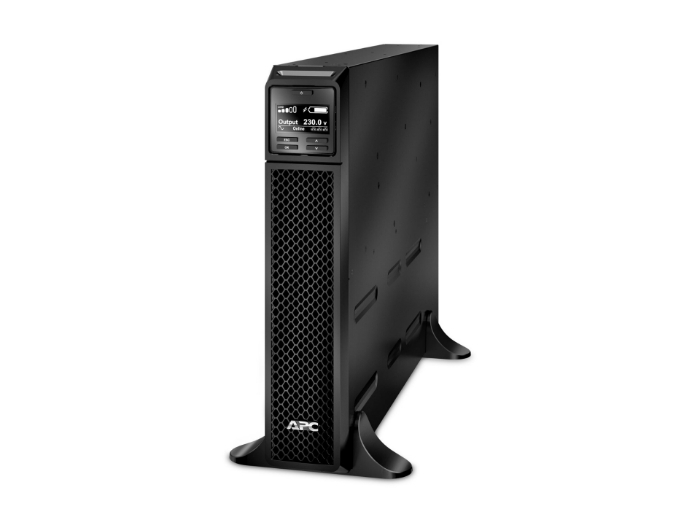

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.



Egenskaper

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment



Teknisk specifikation

Typ av enhet	UPS - extern

UPS-teknik	Online
Inspänning	AC 230 V
Inspänningens område	AC 220-240 V
Inspänningens område (justeringsbart)	AC 100 - 275 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	Ström IEC 60320 C20, ström BS 1363A, Eurokontakt (ström CEE 7/16)
Kontaktdetaljer för uteffekt	8 x power IEC 60320 C13 2 x ström IEC 60320 C19
Utspänning	AC 230 V ± 3% - 50/60 Hz
Effektkapacitet	2700 Watt / 3000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	340 joule

Teknik	Bly-syra
Laddningstid	3 timmar
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	RS-232, USB

Gränssnitt	1 x seriell - RJ-45 1 x EPO (emergency power off) 1 x hantering (USB)
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Medföljande kablar	3 x strömkabel 2.44 m
Egenskaper	Hörbart larm, nödavstängning, LCD-bildskärm, intern förbikoppling
Standarder som följs	VDE, IEC 62040-2, IP20, EAC, RCM, IEC 62040-1

Medföljande programvara	APC PowerChute Business Edition

ENERGY STAR	Ja

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	55 dBA

Bredd	8.5 cm
Djup	63.5 cm
Höjd	43.2 cm
Vikt	31.3 kg

Emballagets bredd	59.9 cm
Emballagets djup	87.1 cm
Emballagets höjd	24.6 cm
Emballagets vikt	36.74 kg
