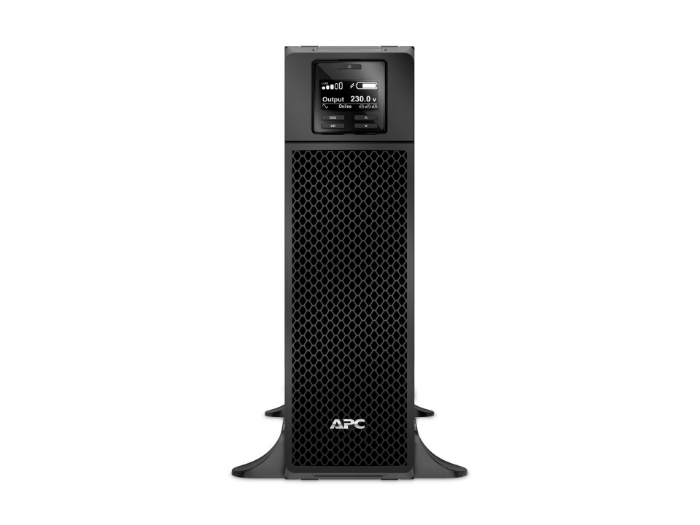

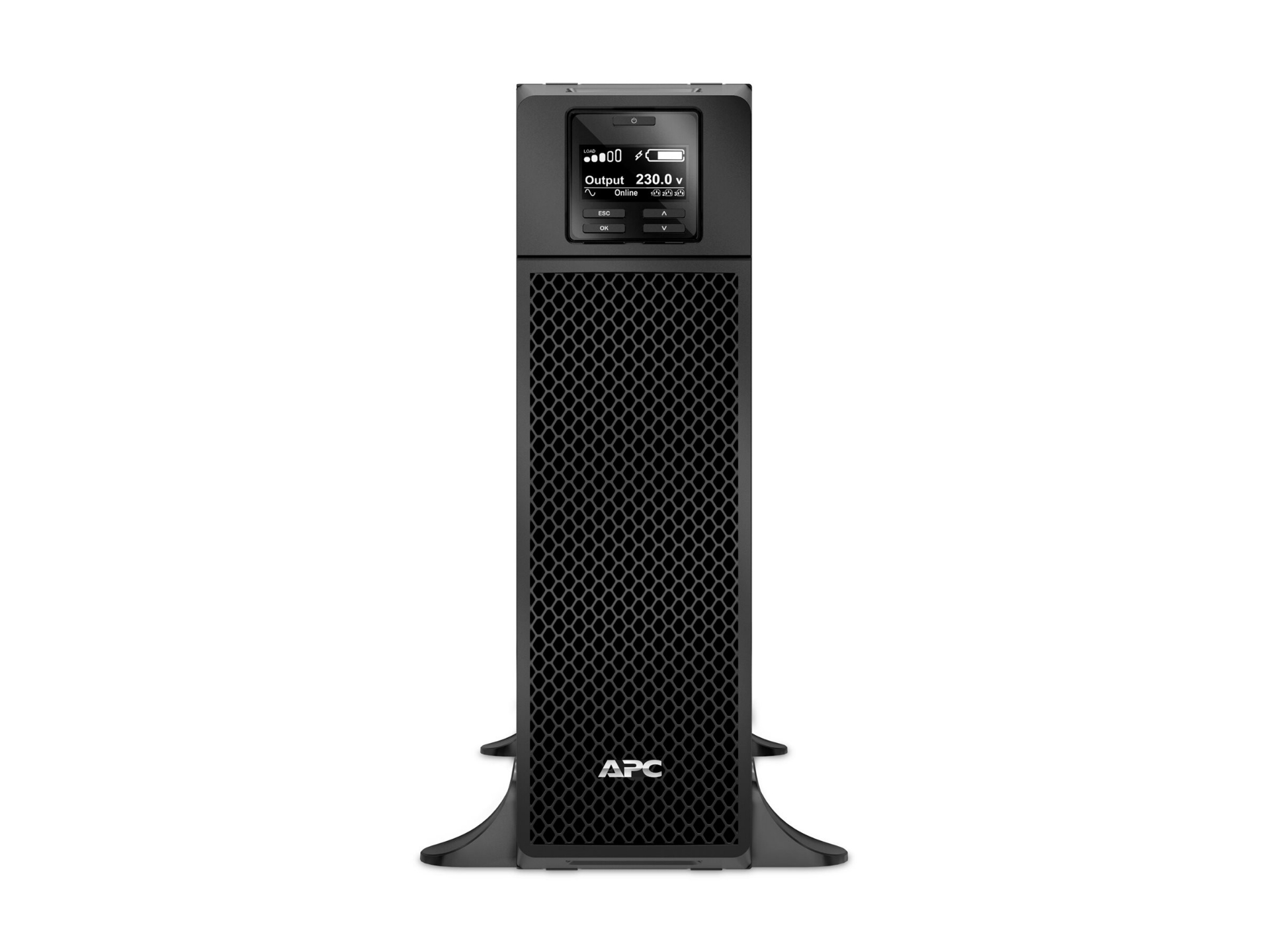

Produktbeskrivning

LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.



Egenskaper

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

10/100 BaseT сonnection
Connect the device to a network using a 10 or 100 BaseT connection.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Scalable runtime
Allows additional run time to be quickly added as needed.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Network manageable
Provides remote power management of the UPS over the network.

InfraStruXure Manager сompatible
Enables centralized management via the APC InfraStruXure Manager.

SmartSlot
Customize UPS capabilities with management cards.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial connectivity
Provides management of the UPS via a serial port.

Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Audible alarms
Provides notification of changing utility power and UPS power conditions.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-start capable
Provides temporary battery power when the utility power is out.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.



Teknisk specifikation

Typ av enhet	UPS - rackmonterbar/extern
Höjd (U-format)	3U
Färg	Svart

UPS-teknik	Online
Inspänning	AC 230 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	45 - 65 Hz
Inmatningsanslutningar	1 x 3-trådig kabel (1PH + N + G)
Kontaktdetaljer för uteffekt	6 x power IEC 60320 C13 4 x ström IEC 60320 C19 2 x IEC-kontakt
Utspänning	AC 230 V ± 3% - 50/60 Hz
Effektkapacitet	4500 Watt / 5000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Energivärdering	480 joule
Effektivitet	98%

Teknik	Bly-syra
Runtime (upp till)	4 min vid full laddning 11.8 min vid halv maskin
Laddningstid	3 timmar
Egenskaper	Underhållsfri, förseglad, läcksäker

Gränssnitt för fjärradministration	Ethernet 10/100, USB

Gränssnitt	1 x hantering (Ethernet) - RJ-45 1 x hantering (USB) - 4-stifts USB typ B 1 x EPO (emergency power off) 1 x seriell - RJ-45
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SmartSlot

Egenskaper	Hörbart larm, LCD-bildskärm
Standarder som följs	C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC

Medföljande programvara	APC PowerChute Business Edition

Service och support	Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95 % (icke-kondenserande)
Ljudnivå	55 dBA

Bredd	13 cm
Djup	71.9 cm
Höjd	43.2 cm
Vikt	54.55 kg

Emballagets bredd	61 cm
Emballagets djup	96 cm
Emballagets höjd	33 cm
Emballagets vikt	63.5 kg

Designat för

P/N: SRT1000RMXLA, SRT1000XLA, SRT10KRMXLT-10KTF, SRT10KRMXLT30, SRT10KRMXLT-5KTF2, SRT10KRMXLT-IEC, SRT10KXLT, SRT10KXLT30, SRT10KXLT-5KTF2, SRT10KXLT-IEC, SRT10KXLTUS, SRT1500RMXLA-NC, SRT1500XLA, SRT192BP, SRT192BPUS, SRT192RMBP, SRT192RMBP2, SRT192RMBP2US, SRT192RMBPM, SRT192RMBPUS, SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLAUS, SRT2200XLA, SRT3000RMXLA, SRT3000RMXLA-NC, SRT3000RMXLT, SRT3000RMXLT-5KTF, SRT3000RMXLT-NC, SRT3000RMXLW-IEC, SRT3000XLA, SRT3000XLAUS, SRT3000XLT, SRT3000XLT-5KTF, SRT3000XLW-IEC, SRT5KRMXLT-5KTF, SRT5KRMXLT-IEC, SRT5KRMXLW-HW, SRT5KXLT, SRT5KXLT-5KTF, SRT5KXLT-IEC, SRT5KXLTUS, SRT6KRMXLT, SRT6KRMXLT-5KTF, SRT6KXLT, SRT6KXLT-5KTF, SRT6KXLT-IEC, SRT6KXLTUS, SRT72BP, SRT72RMBP, SRT72RMBPUS, SRT8KRMXLT, SRT8KRMXLT30, SRT8KRMXLT-5KTF, SRT8KXLT, SRT8KXLT30, SRT8KXLT-5KTF, SRT8KXLT-IEC, SRT8KXLTUS, SRT96BP, SRT96RMBP, SRT96RMBPUS
