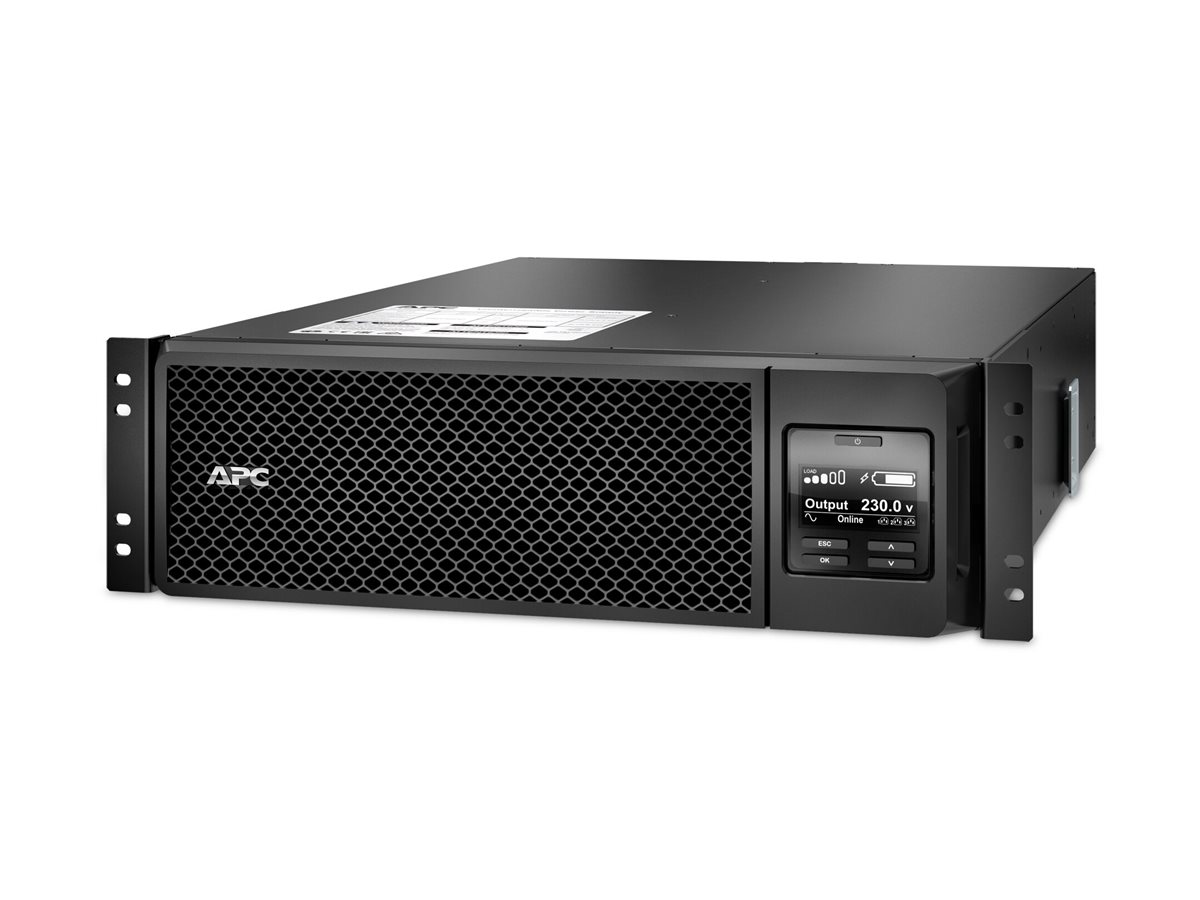

Produktbeskrivning
LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.
Egenskaper
LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
10/100 BaseT сonnectionConnect the device to a network using a 10 or 100 BaseT connection.
Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance.
Automatic internal bypassSupplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtimeAllows additional run time to be quickly added as needed.
Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced.
Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Network manageableProvides remote power management of the UPS over the network.
InfraStruXure Manager CompatibleEnables centralized management via the APC InfraStruXure Manager.
SmartSlotCustomize UPS capabilities with management cards.
LED status indicatorsQuickly understand unit and power status with visual indicators.
Serial connectivityProvides management of the UPS via a serial port.
Plug-and-Play external batteriesEnsures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertibleProtects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmwareInstall maintenance releases of firmware remotely using FTP.
User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notificationWarns when a battery is not available to provide backup power.
Audible alarmsProvides notification of changing utility power and UPS power conditions.
Frequency and voltage regulationGives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.
Cold-start capableProvides temporary battery power when the utility power is out.
Resettable circuit breakerEasy recovery from overloads; no need to replace a fuse.
Teknisk specifikation
Allmänt
Typ av enhet | UPS - kan monteras i rack |
Höjd (U-format) | 3U |
Färg | Svart |
Nätdel
UPS-teknik | Online |
Inspänning | AC 230 V |
Tillhandahållen frekvens | 50/60 Hz |
Erforderlig frekvens | 45 - 65 Hz |
Inmatningsanslutningar | 3-trådig kabel (1PH + N + G) |
Kontaktdetaljer för uteffekt | 6 x power IEC 60320 C13 4 x ström IEC 60320 C19 2 x IEC-kontakt |
Utspänning | AC 230 V ± 3% - 50/60 Hz |
Effektkapacitet | 4500 Watt / 5000 VA |
Utvågform | Sinusvåg |
Spänningsavledning | Ja |
Energivärdering | 480 joule |
Effektivitet | 98% |
Batteri
Teknik | Bly-syra |
Runtime (upp till) | 4 min vid full laddning 11.8 min vid halv maskin |
Laddningstid | 3 timmar |
Egenskaper | Underhållsfri, förseglad, läcksäker |
Nätverk
Gränssnitt för fjärradministration | USB |
Expansion/Anslutning
Gränssnitt | 1 x seriell - RJ-45 1 x hantering (USB) - 4-stifts USB typ B 1 x EPO (emergency power off) |
Expansionskortplatser | 1 (totalt)/ 1 (ledig) x SmartSlot |
Diverse
Egenskaper | Hörbart larm, LCD-bildskärm |
Standarder som följs | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
Programvara / Systemkrav
Medföljande programvara | APC PowerChute Business Edition |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 0 - 95 % (icke-kondenserande) |
Ljudnivå | 55 dBA |
Mått och vikt
Bredd | 43.2 cm |
Djup | 71.9 cm |
Höjd | 13 cm |
Vikt | 54.55 kg |
Mått och vikt (brutto)
Emballagets bredd | 61 cm |
Emballagets djup | 96 cm |
Emballagets höjd | 33 cm |
Emballagets vikt | 63.6 kg |
Kompatibilitetsinformation
Designat för | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2407, AR2480, AR2487, AR2487G, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR8135BLK, NBWL0356A |
