Produktbeskrivning
Smart-UPS SRT provides high density, true double-conversion power protection for servers, voice / data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS SRT can be configured with matching battery packs to comply with aggressive runtime demands. It provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Egenskaper
Predictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notificationWarns when a battery is not available to provide backup power.
Audible alarmsProvides notification of changing utility power and UPS power conditions.
User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Resettable circuit breakerEasy recovery from overloads; no need to replace a fuse.
Frequency and voltage regulationGives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.
Cold start capableProvides temporary battery power when the utility power is out.
Network manageableProvides remote power management of the UPS over the network.
Automatic internal bypassSupplies utility power to the connected loads in the event of a UPS power overload or fault.
Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtimeAllows additional run time to be quickly added as needed.
Hot swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replaced.
Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.
Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
Teknisk specifikation
Allmänt

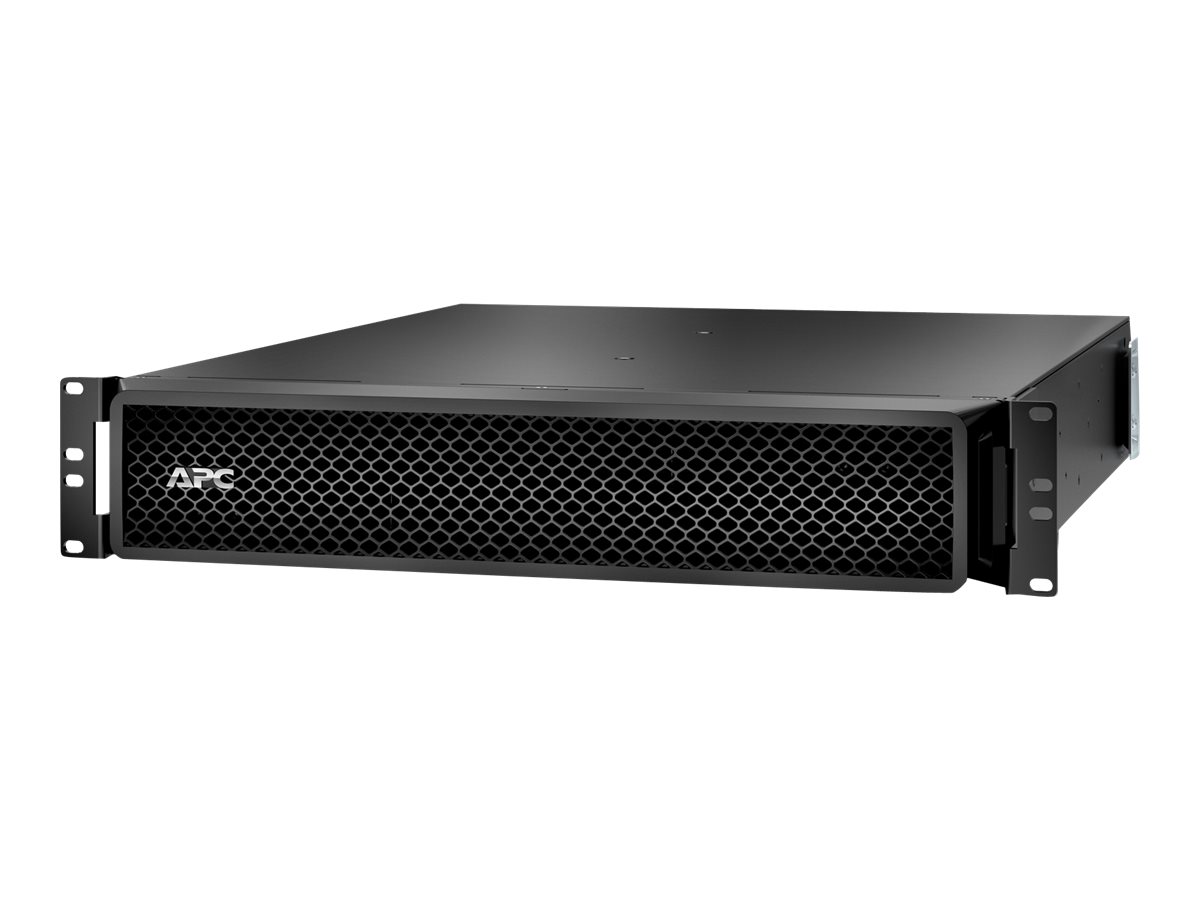

Typ av enhet | Batterihölje - kan monteras i rack |
Höjd (U-format) | 2U |
Färg | Svart |
Batteri
Antal | 2 |
Teknik | Bly-syra |
Egenskaper | Underhållsfri, förseglad, läcksäker |
Diverse
Standarder som följs | RoHS, REACH |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år Begränsad garanti - batterier - 2 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 0 - 95% |
Mått och vikt
Bredd | 43.2 cm |
Djup | 59.4 cm |
Höjd | 8.5 cm |
Vikt | 33.9 kg |
Mått och vikt (brutto)
Emballagets bredd | 59.9 cm |
Emballagets djup | 83.1 cm |
Emballagets höjd | 23.9 cm |
Emballagets vikt | 40.82 kg |
Kompatibilitetsinformation
Designat för | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SRT10KRMXLI, SRT10KXLI, SRT10RMXLIX806, SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLAUS, SRT2200RMXLI, SRT2200RMXLI-NC, SRT5KXLI, SRT6KRMXLI, SRT6KRMXLI-6W, SRT6KRMXLIM |
