Produktbeskrivning

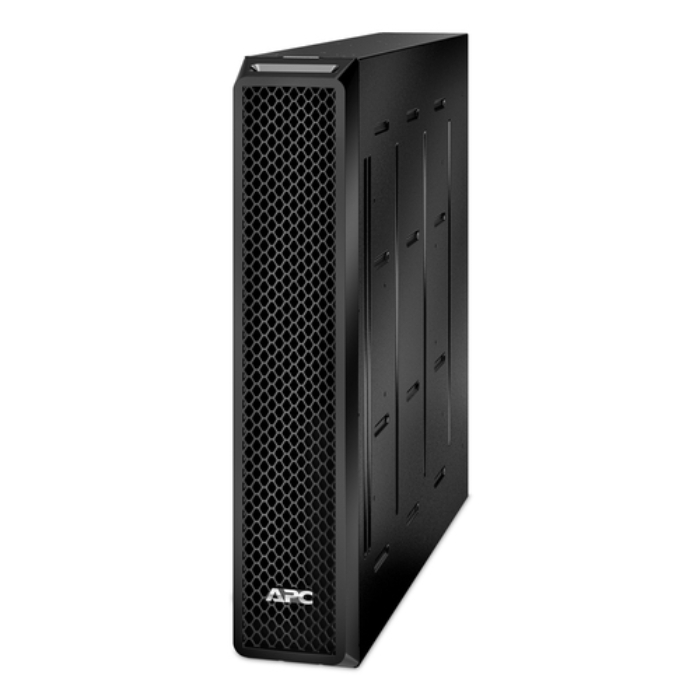

This product is part of the Smart-UPS battery systems, providing extended runtime to SRT mission critical applications. This extendable-run battery pack provides extended runtime during prolonged power outages. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. Its dimensions are 536mm (depth) x 432mm (height) x 85mm (width) and weighs 29.9kg. Ideal for Smart-UPS on-line mission critical applications.



Viktiga egenskaper

APC Smart-UPS SRT 48V 1kVA 1.5kVA Battery Pack. Output power capacity: 1.5 kVA. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black. Width: 85 mm, Depth: 536 mm, Height: 432 mm. Package width: 594 mm, Package depth: 749 mm, Package height: 244 mm



Teknisk specifikation

Output power capacity	1.5 kVA

Battery technology	Sealed Lead Acid (VRLA)
Battery life (max)	5 year(s)
Hot-swap battery	Yes

Form factor	Tower
Product colour	Black

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Width	85 mm
Depth	536 mm
Height	432 mm
Weight	29900 g
Package width	594 mm
Package depth	749 mm
Package height	244 mm
Package weight	37000 g

Manual	Yes

Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000

Output voltage	48 V
