Produktbeskrivning

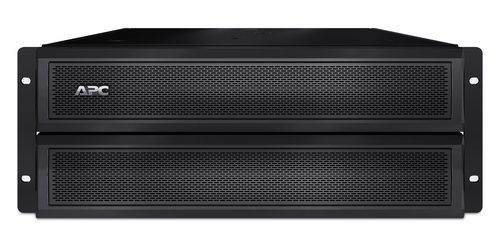

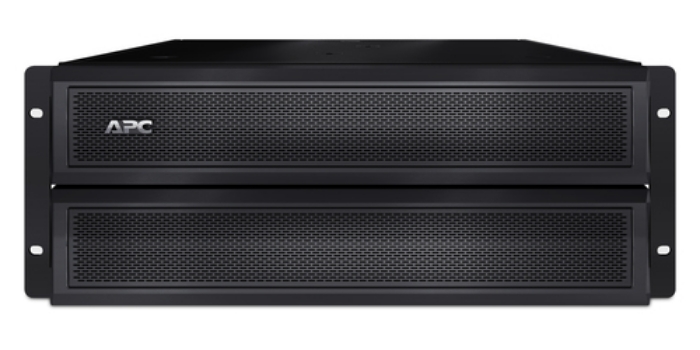

Easily connect this external battery pack to an existing APC Smart-UPS X to instantly increase the amount of battery runtime to connected devices during a power outage. Please refer to your APC Smart-UPS X manual to confirm compatibility with this external battery back. The battery pack offers easy plug-and-play installation onto an operating APC Smart-UPS, ensuring power availability while runtime capacity is added. Through the APC Smart-UPS’ intelligent battery management and precision charging, the battery pack maintains the UPS system’s performance, reliability, and useful life. The APC battery pack provides scalable runtime to the APC Smart-UPS X, allowing multiple battery packs to be quickly added if the need arises. The battery pack operates equally in tower configuration, standing next to an APC Smart-UPS, or in rack-mount configuration, mounted below the UPS. Package Includes APC SMX120BP External Battery Pack, installation guide, and rack-mounting brackets.
Viktiga egenskaper
APC Smart-UPS X-Series External Battery Pack Rack/Tower 120V, 1200VAh, rackmount, 4U. Battery voltage: 120 V, Battery capacity: 1200 VAh, Battery life: 3 year(s). Compliance certificates: RoHS, Certification: REACH. Battery technology: Sealed Lead Acid (VRLA). Weight: 60.9 kg, Width: 432 mm, Height: 178 mm. Package width: 586 mm, Package height: 330 mm, Package depth: 633 mm
Teknisk specifikation
Features
| Product colour | Black |
|---|
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery voltage | 120 V |
|---|
| Battery capacity | 1200 VAh |
|---|
| Battery life | 3 year(s) |
|---|
| Hot-swap battery | Yes |
|---|
| Certification | REACH |
|---|
Technical details
| Total carbon footprint (kg of CO2e) | 299.69 |
|---|
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Weight | 60910 g |
|---|
| Width | 432 mm |
|---|
| Height | 178 mm |
|---|
| Depth | 483 mm |
|---|
Packaging data
| Package width | 586 mm |
|---|
| Package height | 330 mm |
|---|
| Package depth | 633 mm |
|---|
| Package weight | 65450 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 0 - 95 % |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Logistics data
| Harmonized System (HS) code | 85044095 |
|---|
